Fluorite Powder Ultrafine Grinding Mill

Table of Contents

Introduction Of Fluorite Powder Ultrafine Grinding Mill

Fluorite powder ultrafine grinding mill is a specialized equipment for grinding and processing fluorite powder. With the development of society and the improvement of people’s living standards, the demand for fluorite powder is increasing, which has driven the development of the fluorite powder ultrafine grinding mill industry.

The fluorite powder ultrafine grinding mill uses a combination of crushing, grinding, and other processes to break the fluorite ore into small particles and then grind it into powder. The fineness of the fluorite powder can be adjusted between 325 mesh and 2500 mesh, and the output can reach up to 22 tons per hour.

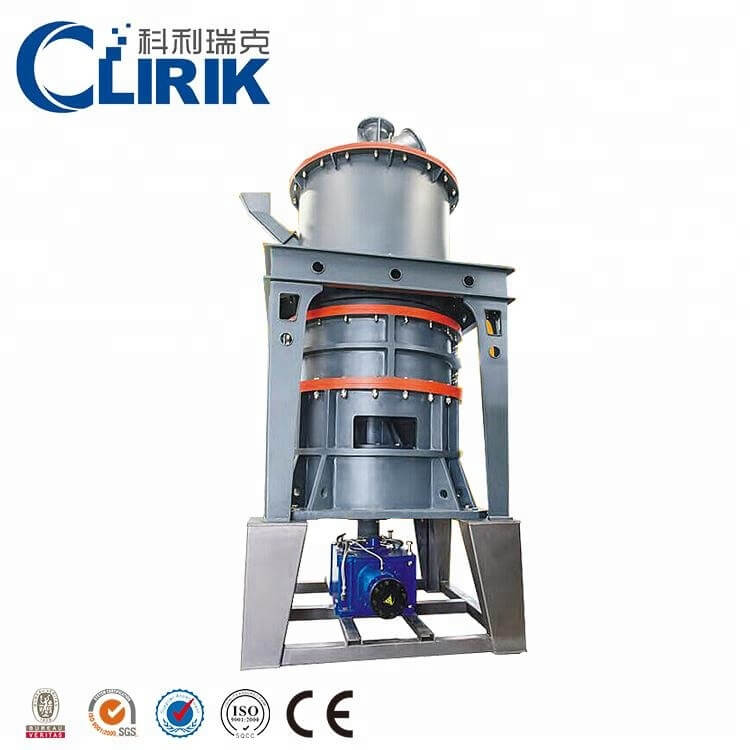

Fluorite Powder Ultrafine Grinding Mill
Fluorite Powder Ultrafine Grinding Mill

The ultrafine grinding mill for fluorite powder has the advantages of high efficiency, energy saving, environmental protection, and low noise. It adopts advanced technology and is equipped with a variety of grinding equipment, such as Raymond mill, ultrafine mill, vertical mill, and so on, which can meet the needs of different customers.

In addition, the ultrafine grinding mill for fluorite powder has a wide range of applications. Fluorite powder can be used in various industries, such as metallurgy, chemical industry, building materials, pharmaceuticals, agriculture, and environmental protection. For example, fluorite powder can be used as a flux in the metallurgical industry, a raw material for the production of hydrofluoric acid in the chemical industry, and a filler in the building materials industry.

Overall, the fluorite powder ultrafine grinding mill is a necessary equipment for the processing of fluorite powder, and it has broad market prospects.

Advantage Of Fluorite Powder Ultrafine Grinding Mill

1. High Efficiency: These mills are designed to operate at high efficiency levels and to grind materials to a fine powder quickly and efficiently. They are typically equipped with powerful motors and high-quality grinding media to ensure optimal performance.

2. Versatility: Fluorite powder ultrafine grinding mill are capable of grinding a wide range of materials, including hard and soft ores, minerals, and other materials. They can also handle materials with a wide range of moisture levels and particle sizes.

3. Durability: These mills are built to withstand the harsh conditions of mining operations, with rugged construction and high-quality components that are designed to last for years.

4. Low Maintenance:

Fluorite powder ultrafine grinding mill require minimal maintenance, thanks to their robust construction and high-quality components. They are designed to operate for long periods without requiring major repairs or replacements.

5. Safety: These mills are designed with safety in mind, with features like automatic shutdown systems and emergency stop buttons that help to prevent accidents and injuries.

6. Energy Efficiency: Many fluorite powder grinding mill are designed to be energy-efficient, with features like variable speed drives and energy-saving motors that help to reduce energy consumption and lower operating costs.

7. Automation: Many modern fluorite powder grinding mills are equipped with advanced automation systems that can help to improve productivity and efficiency, while also reducing the need for manual labor.

Parameter Of Fluorite Powder Ultrafine Grinding Mill

Parameter 1

Model HGM80 HGM80A HGM90L HGM100L-Ⅱ HGM100P HGM125L HGM1680L
Ring Diameter(mm) 800 800 900 1000 1000 1250 1680
Ring Number (PCS) 3 3 4 4 4 4 4
Input Size (mm) ≤10 ≤10 ≤10 ≤15 ≤15 ≤20 ≤20
Adjustable range of finished product (mesh) 150-3000 150-3000 150-3000 150-3000 150-3000 150-3000 150-3000
Capacity (t/h) 0.5-5.5 0.5-5.5 0.8-6.5 1.2-10 1.2-11 2.5-20 5-45
Outlet Size L*W*H (mm) 8605*4139*6050 10454*3393*6626 11735*3952*7525 14507*3633*7562 14362*4200*7562 19261*4406*8591 25067*5414*9007
Main motor power (kw) 75 75 55*2 132/75*2 132/75*2 185 315

Parameter 2

Unit KW HGM80 HGM90L HGM100L/HGM100P HGM125L HGM168L
Main Unit 75 2*45 132-150 185-200 315
Classifier 18.5 18.5-30 30-37 75 132
Blower 45 55 75 2*45-2*55 2*75-2*90
Crusher 18.5 18.5 18.5 45 75
Bucket Elevator 3 3 4 4 7.5
BeltConveyor Feeder 1.5 1.5 1.5 1.5 2
Discharging Valve 2*0.75 1.1 1.1 1.5 2*1.5
Air compressor 11 15 22 37 55

Working Principle Of Fluorite Powder Ultrafine Grinding Mill

1. The crusher will crush the big materials into small ones, and then the elevator will send them to the hopper.

2. The vibrating feeder will send the materials to the middle of first dial evenly.

3. The motor of main equipment drives the main shaft and dial through reducer, and the dial drives numbers of rollers moving in the ring channels via pins.

4. The materials will be driven to the edge of dial by centrifugal force and fall down into the ring, crushed and grinded by roller, and become powder after production of three rings.

5. The high pressure centrifugal blower will inhale air from outside and bring the crushed materials to classifier.

6. The rotating turbo in the powder collector will make the coarse materials return to the mill and regrounded, while the fineness will mix with the air and go into the cyclone and be discharged in the discharge bin, which is at the bottom of it.

7. The air, which mixed with very little fineness, will be purified by impulse duster and discharged by blower and muffler.

Manufacturer Of Fluorite Powder Ultrafine Grinding Mill

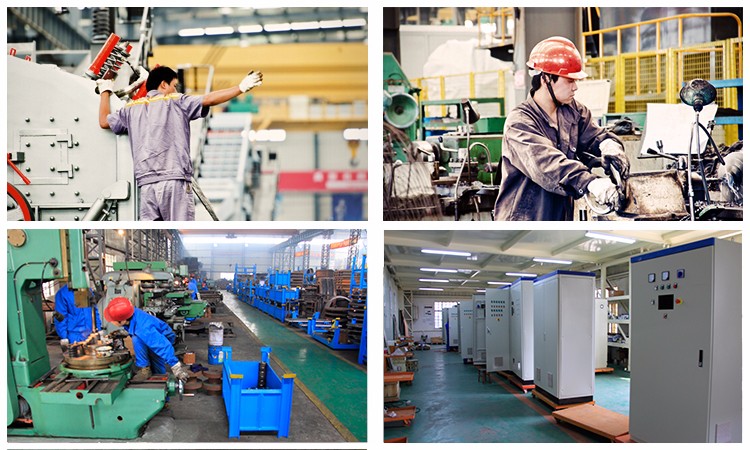

SHANGHAI CLIRIK MACHINERY CO., LTD located in PUDONG New district of Shanghai China as a professional enterprise, which specializes in research, manufacture and sales of all kinds of mining equipment. Our company has already formed a full set of modern production lines, equipped with intelligent, standardized testing and controlling laboratories, owned a professional team for R&D, production, sales and service.

Pre-sale service:

1.​ Clirik provides a variety of mining equipment for you to choose from.

2.​ Clirik will recommend suitable production lines and grinding equipment to you according to your site.

3.​ Clirik customizes the logo and color of the grinding equipment according to your company image.

4.​ Clirik provides third party inspection to ensure the quality of your grinding equipment.

After-sales service:

1. Clirik provides you with online installation and uses videos.

2. Clirik will provide you with technicians to install and debug the grinding equipment.

3. Clirik trains you the technicians who use and maintain the grinding equipment.

4. Clirik provides you with a one-year warranty and lifetime service for grinding equipment.
