Calcium Carbonate Powder Ultrafine Grinding Mill

Table of Contents

Calcium carboanate powder ultrafine griinding mill

Calcium Carbonate Powder Ultrafine Grinding Mill

Modle : HGM Series

Finished Size: 150-2500 mesh

Processing Ability: 1-45 t/h

Max Feeding Size: 10-25 mm

MQQ : 1 Set

Price: 59999- 159999 $

Range Of Application: Calcium Carbonate 、Limestone 、Kaolin、Gypsum 、Bentonite、Dolomite…

Product Parameter Of Calcium Carbonate Powder Ultrafine Grinding Mill

Parameter 1

Model HGM80 HGM80A HGM90L HGM100L-Ⅱ HGM100P HGM125L HGM1680L
Ring Diameter(mm) 800 800 900 1000 1000 1250 1680
Ring Number (PCS) 3 3 4 4 4 4 4
Input Size (mm) ≤10 ≤10 ≤10 ≤15 ≤15 ≤20 ≤20
Adjustable range of finished product (mesh) 150-3000 150-3000 150-3000 150-3000 150-3000 150-3000 150-3000
Capacity (t/h) 0.5-5.5 0.5-5.5 0.8-6.5 1.2-10 1.2-11 2.5-20 5-45
Outlet Size L*W*H (mm) 8605*4139*6050 10454*3393*6626 11735*3952*7525 14507*3633*7562 14362*4200*7562 19261*4406*8591 25067*5414*9007
Main motor power (kw) 75 75 55*2 132/75*2 132/75*2 185 315

Parameter 2

Unit KW HGM80 HGM90L HGM100L/HGM100P HGM125L HGM168L
Main Unit 75 2*45 132-150 185-200 315
Classifier 18.5 18.5-30 30-37 75 132
Blower 45 55 75 2*45-2*55 2*75-2*90
Crusher 18.5 18.5 18.5 45 75
Bucket Elevator 3 3 4 4 7.5
BeltConveyor Feeder 1.5 1.5 1.5 1.5 2
Discharging Valve 2*0.75 1.1 1.1 1.5 2*1.5
Air compressor 11 15 22 37 55

Product Overview Of Calcium Carbonate Powder Ultrafine Grinding Mill

Calcium carbonate powder ultrafine grinding mill is also called calcium carbonate powder ultrafine Raymond grinding machine, ore grinding machine, three-ring medium speed grinding and so on, 3000 mesh calcium carbonate powder ultrafine grinding mill complete set of stone grinding powder production line, is a commonly used in mining, construction, chemical industry, mine and other industries grinding equipment, The equipment can grind non-flammable and non-explosive materials with mohs hardness not greater than 6, and has the advantages of mature structure, simple operation and strong processing capacity.

Calcium Carbonate Powder Ultrafine Grinding Mill

Calcium Carbonate Powder Ultrafine Grinding Mill Advantage

  • High Efficiency
  • Long Lifecycle Of Spare Parts
  • High Safety And Reliability
  • High Fineness , Flexible Adjustment
  • Environment -Friendly
  • Advanced Intelligent Speed Control Device

Working Principle Of Calcium Carbonate Powder Ultrafine Grinding Mill

Calcium carbonate powder ultrafine grinding mill host motor through the host pulley power input to the main shaft and then drives each layer of the turntable rotation. The pin drives three – or four-ply ring rollers to roll and rotate in the ring raceway by means of a turntable.

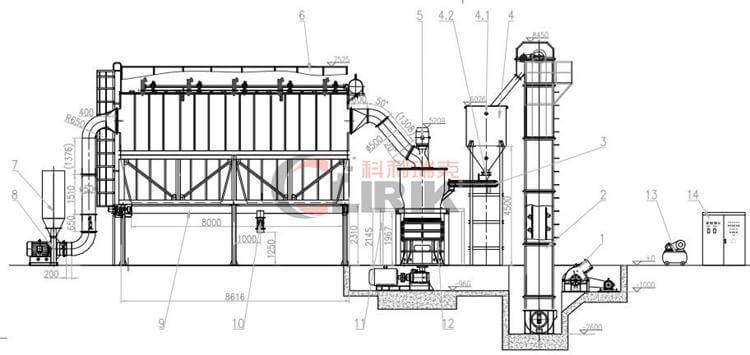

Large pieces of material are broken into small particles by a hammer crusher, which are then fed into the storage bin by a hoist. Skirt belt feeder will feed the material through the feeding port evenly to the middle of the upper rotary table.

calcium carbonate-powder-grinding-mill-principle
calcium carbonate-powder-grinding-mill-principle

Under the action of centrifugal force, the material diffuses to the periphery of the circle, falls into the raceway of the grinding ring, and is stamped, rolled, ground and crushed by the grinding ring roller. The material is crushed by the first layer and then split into the second layer and the third layer for further crushing.

The high-pressure centrifugal fan inhales the external air into the classifier, and enters the separator through three layers of powdery materials. The rotating turbine in the powder separator makes the coarse particles that do not meet the requirements go back and regroup. The fine powder enters the cyclone powder collector with the airflow and is discharged through the discharge valve at the bottom, which is the finished product. The airflow containing a small amount of fine dust is purified by the pulse powder collector and discharged through the fan and muffler

Manufacturer Introduction Of Calcium Carbonate Powder Ultrafine Grinding Mill

Calcium carbonate powder ultrafine grinding mill manufacturer Shanghai Clirik Machinery Co., Ltd is located in Pudong New Area, Shanghai, China. It is a professional enterprise specializing in research and development, production and sales of all kinds of mining equipment. The company has formed a full set of modern production lines, equipped with intelligent, standardized testing and control laboratory, with research and development, production, sales, service in one of the professional teams.

Company service

Our Serivce

  • One year guarantee for the whole machine except for wear parts.
  • 24 hours technical support by email.
  • Calling service.
  • User manual available.
  • Reminding for the service life of the wearing parts.
  • Installation guide for clients from both China and abroad.
  • Maintenance and replacement service.
  • Whole process training and guidance from our technicians.


Because there are 5 different kinds of Calcium carbonate powder ultrafine grinding mills, so our Calcium carbonate powder grinding mill unit has different prices, I need to ask you for some details to send you the more suitable quotation:

We will give you factory price with full specification, so please leave us an inquiry to know more details about price, packaging, shipping and discount.
