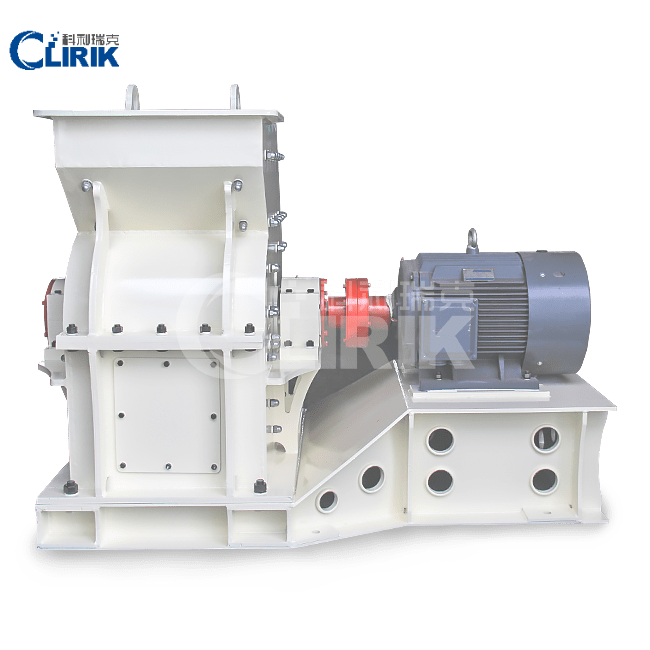

PC Series Hammer Crusher

Table of Contents

hammer crusher

PC Series Hammer Crusher

Output Size: 5-20 mm

Feed size.: <350 mm

Capacity: 5-30 t/h

MQQ : 1 set

Price: 5000 – 30000 $

Use Range : Calcite、Calcium Carbonate、Dolomite、Gypsum、Carbon Black、Gypsum、Kaolin、 Marble …

Application : Mining、Chemiscal、 Pigment、 Plastic、Transport and many other different areas.

Product Parameter

Model PC400x300 PC600x400 PC800x600
Rotor Diameter (mm) 400 600 800
Rotor Length (mm) 300 400 600
Rotor Speed(r/min) 1100 1000 900
Max. Feeding Size(mm) <100 <220 <350
Ouput Size(mm) 5-10 5-15 5-20
Capacity(t/h) 5-13 10-20 18-30
Motor Power(kw) 11 18.5 45
Moisture of feeding material <3% <3% <3%
Number of Hammer(piece) 16 20 28
Weight(t) 0.8 1.8 2.8
Overall Dimension (L*W*H/mm) 900*670*860 1200*1050*1200 2360*1490*1415
Note: This specification is just referencing, any changes are subject to the products.

Product Application

HIGH EFFICIENCY

Hammer Crusher

PC Series Hammer crusher is equipment using high-speed rotary hammers to crush materials, mainly applied to the industries of metallurgy, mining, chemistry, cement, construction, refractory materials and ceramics. It can crush hard and soft ores into medium or small size, such as barite, limestone, gypsum, terrazzo, coal, slag, and up to 100 different kinds.

PC Series Hammer Crusher
PC Series Hammer Crusher
  • Simple structure; Easy operation
  • Uniform particle size with high crushing ratio
  • Low investment and environmantal-friendly
  • High capacity and decrease power    consumption by 20-30%

Working Principle

PC Series Hammer crusher mainly consists of frame, rotor, support iron and grate bars. The frame is divided into two parts: upper part and lower part which are welded by steel plates after being cut. Liners made of high manganese steels within the frame can be replaced after being worn out. The rotors consist of the turn plate, pin shafts, and hammers which are grouped regularly in the main shaft. The motor drives the rotors to rotate quickly in the crushing cavity, and hammers spread outward as a result of centrifugal force from the rotation of the rotors.

PC Series Hammer Crusher

Large materials entering the crusher through the feed inlet are stricken, impacted, cut and ground by the high-speed hammers to small size. Qualified materials crushed will be screened out and exit from the gap of the grate bars while the unqualified will be left in the crushing cavity to be further hammered and ground until reach the standard size. The size of the final product can be adjusted by changing the grate bars. The gap between the rotors and the grate bars can also be adjusted according to different requirement.

Other Products Offered

Besides PC Series Hammer Crusher, we also have other ultrafine grinding equipment for you to choose.

PC Series Hammer Crusher
