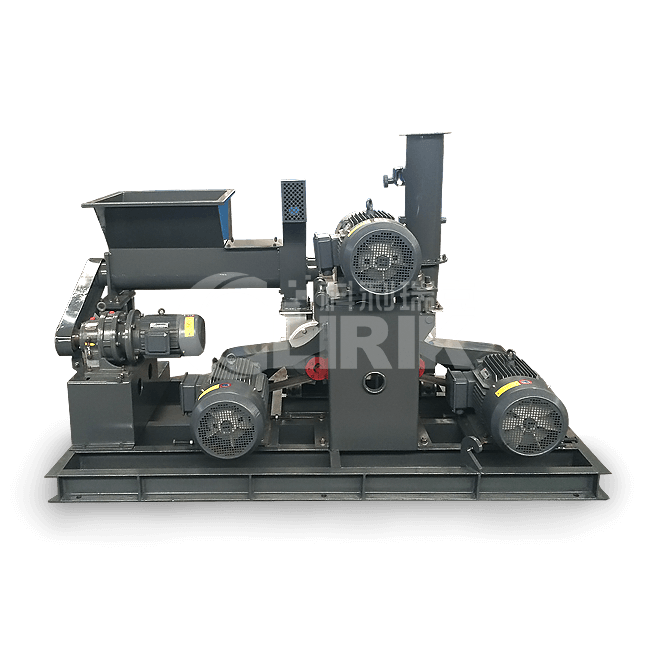

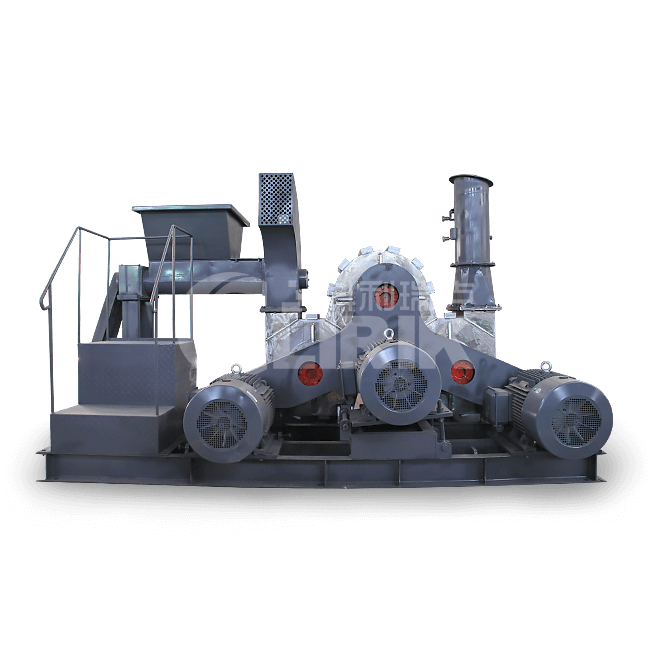

CLG Series Powder Surface Coating Machine

Powder Surface Coating Machine

Capacity : 40-7000 kg/h

Max feeding size: Optional

Processing ability: 40-7000 kg/h

MQQ : 1 Set

Price: 9999-599999 $

Range of application: Heavy / light calcium carbonate、Kaolin、 Talcum、Wollastonite、 Mica、White carbon black、 Zinc oxide、Alumina、Silicon powder、Graphite…

Product Parameter

Model

Main Power

Blower Power

Speed of Shaft

Capacity

Weight

Overall Dimension

CLG-200D

11kw

2.2kw

5700 r.p.m

40-150kg/h

1t

3200*600*2200mm

CLG-3/300

3-18.5kw

5.5kw

4500 r.p.m

500-1800kg/h

3t

5800*1800*5600mm

CLG-3/600

3-37kw

15-22kw

2700 r.p.m

2000-4000kg/h

10t

11200*3100*6200mm

CLG-3/900

3-75kw

45kw

2000r.p.m

4000-7000kg/h

20t

21000*3800*6500mm

Product Overview

A mineral powder surface modifying machine is also called a Powder surface coating machine. It is widely used in the fields of non-metal stuffing like pigment, plastic, rubber, adhesive, macromolecule materials, high polymer composite, functional materials, and dope industries. It is an outcome of the development of new and high technology nowadays.

After dealing with Powder Coating machine, it can not only improve the compatibility of both non-organic mineral stuff and organic high polymer, enhance the binding force of interfaces, rise the mechanical strength and comprehensive ability, but also increase the stuffing ability of powder, save product cost and add a special physical and chemical property to the product to some extent.

Product Application

With special chamber design and the function of modification and depolymerization, the machine is applicable to modifying various materials.

It can reach excellent surface modifications for such materials as heavy/light calcium carbonate, kaolin, talcum, wollastonite, mica, white carbon black, zinc oxide, alumina, silicon powder, graphite, magnesium-hydroxide bariumcarb, illite claystone, and pyrophylite, hexagonite and etc.

Applicable Materials:

Calcium carbonate
calcite
Pebbles

Applicable Fields:

Pigment
Paint
Food

Product Advantage

1. Continuous operation, large capacity, suitable for industrialization production on various scales.

2. High use and less consumption of modifying agents. High covering and active index of power, energy saving.

3. Both modifying and dispersion function, suitable for any fine materials, special active effect for material with small proportion and big cubage weight like white carbon, mica powder, and talcum powder.

4. Powder and agent mixing and running in high speed and vortex, high modifying efficiency, with little chance of granulate shape.

5. Running at vacuum, airtight, no dust leakage, no pollution, good operation condition, low labor intensity.

6. Operating in heat and cold conditions, no additional heating or cooling system required easy operation.

7. Independent fluid and non-fluid agent adding system for continuous, stable, and even operation.

Working Principle

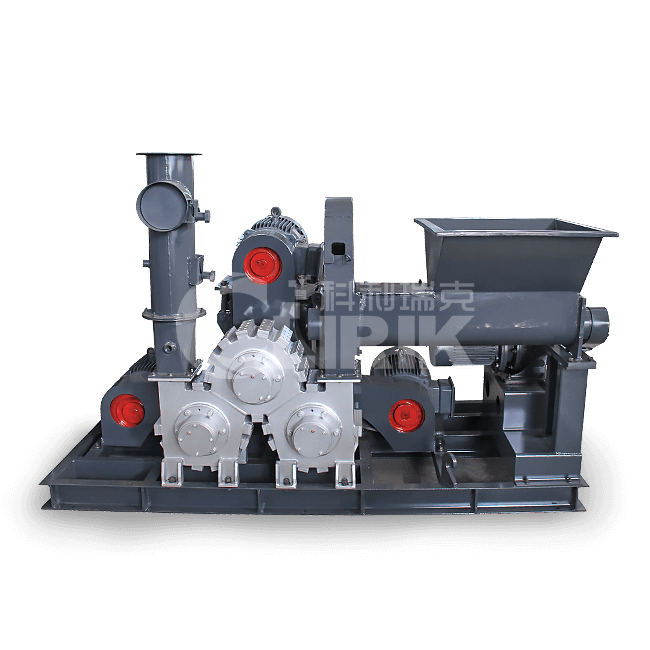

The powder surface treatment is completed mainly by means of three modifying rollers.

The dry powder and dosed agent are put into modifying rollers simultaneously. With high-speed rotation, the materials and agents are running in the form of a fluidizing vortex.

The modification is completed with the heat generated by high-speed shearing, colliding and friction among the rotor, stator, and powder.

Other Products offered

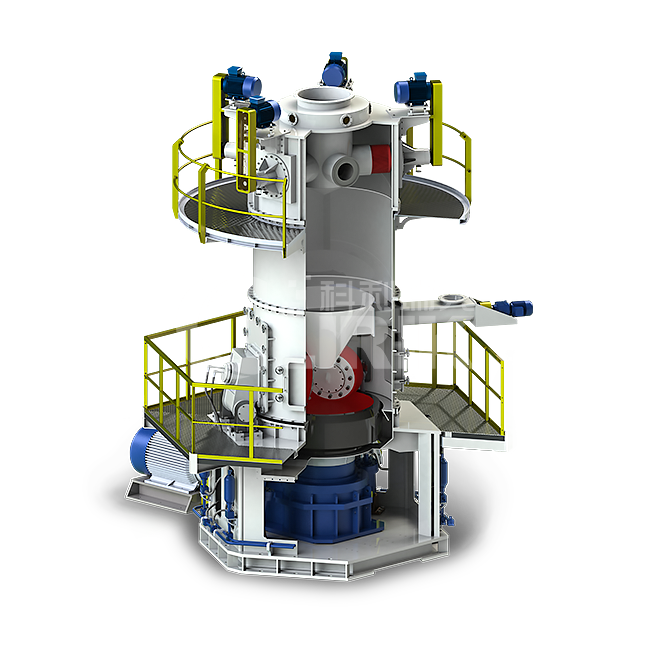

High Pressure Suspension Grinding Mill
