Product Overview Of LXMC Series Ultra Fine Wet Stirring Mill

LXMC series ultra fine wet stirring mill is widely used in grinding calcium carbonate, soft or hard kaolin, coal-water slurry, mica, barite, illite, gypsum, rare earth, magnesium oxide, aluminum oxide, red iron oxide, magnetic materials, and so on.

The fineness can reach 2 microns with a 90% passing through rate per single mill one time. Products can be directly used for paper filler, coating, or after drying for coatings, paints, cosmetics, disposable diapers, plastic, PVC, and rubber filler, wire, and cable industries.

LXMC series ultra fine wet stirring mill feed particle size is 200-400 mesh, largest single machine can grind 2 microns or less D90 (6000 mesh) of the following products; Optimization of the length to diameter ratio for pulp residence time is long, the material running route is long, high crushing ratio, uniform particle size distribution, particle shape is spherical.

Product Parameter Of LXMC Series Ultra Fine Wet Stirring Mill

 LXMC1000 Technical Specification:

Technique	Single mill		Two mills in Series
Powder finness -2 micron	D60	D90	D95
Solid content	70%-75%	70%-75%	70%-75%
Capacity per hour (dry materials)	1.4-1.8	0.6-0.8	0.7-0.9
The dosage of dispersants(Kg/t)	4	10	14
Grinding meson balls loss(Kg/t)	0.2-0.4	0.5-0.6	0.8-1.2
Power consumption(KW/t)	<45	<130	<170

LXMC3600 Technical Specification:

Technique	Single mill		Two or more mills  in series
Powder finness -2 micron	D60	D90	D95	D98
Solid content	70-76%	70-76%	70-76%	70-76%
Capacity per hour (dry materials)	3-3.8	1-1.5	1.8-2.2	1.5-1.8
The dosage of dispersants（Kg/t)	4	8	12	15
Grinding meson balls loss（Kg/t)	0.3-0.4	0.5-0.6	0.8-1.0	0.8-1.2
Power consumption（KW/t)	<40	<125	<145	<180

LXMC5600 Technical Specification:

Technique	Single Mill	Two or more mills in series
Main unit quantity	One mill	Two mills	Three mills
Solid content	70%-76%	70%-76%	70%-76%
Powder finness -2 micron	D60	D75	D98
Capacity per hour (dry materials)	4.5-5	4.5-5	4.5-5
The dosage of dispersants（Kg/t)	<5	<6	<15
Grinding meson balls loss（Kg/t)	0.3-0.4	0.4	1-1.2
Power consumption（KW/t)	<40	<50	<185

Working Principle Of LXMC Series Ultra Fine Wet Stirring Mill

Homogenization slurry into the bottom of grinding chamber, transmission device drives multistage mixers motivation in multi dimensions and self-rotation way, together with slurry and ceramic beads or zirconium beads.

The mixer tank is made of high resist abrasion with an odd shape. Materials are grind by weight and pressure of smooth surface balls and the stress of screw rotating centrifugal stress produced by friction, extrusion and shear, moderate rub and under the action of impact force, effectively.

Using the industrial teeth, said the mixer made of tungsten carbide alloy, reasonable linear velocity, can effectively reduce the starting torque, greatly reduce the wastage of the mill grinding meson balls, the pulp whiteness no effect; improve equipment operation efficiency and prolong the service life.

The material properties do not change. Mill feed particle size is 200-400mesh, largest single machine can grind 2 microns or less D90 (6000 mesh) of the following products; Optimization of the length to diameter ratio for pulp residence time is long, the material running route is long, high crushing ratio, uniform particle size distribution, particle shape is spherical.

Product Advatage Of LXMC Series Ultra Fine Wet Stirring Mill

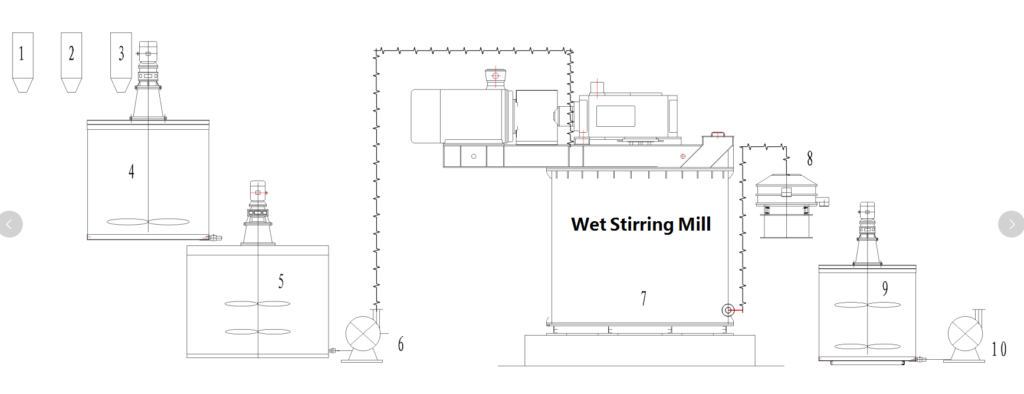

LXMC Series Ultra Fine Wet Stirring Mill Structure:

1. Powders; 2. Water 3. Disperse; 4. Slurry pump; 5. Buffering pump; 6. Pump; 7. Wet stirring mill; 8. Vibrating feeder; 9. Barrel to be checked; 10. Pump

LXMC Series Ultra Fine Wet Stirring Mill Features:

•Ultra fine powders, the finest powders reach 2 microns with content of 90% for milling one time.

• Widely used in many industries.

• High productivity, high grinding efficiency, low energy consumption.

• Reliable and stable mechanical properties Vertical-shaped star wheel reducer higher transmission efficiency, run more smoothly.

• Low consumption of grinding media, non-polluting.

• The temperature is low for finished products, good liquidity.

• The components inside the mill with high hardness wear-resistant materials, long service life.

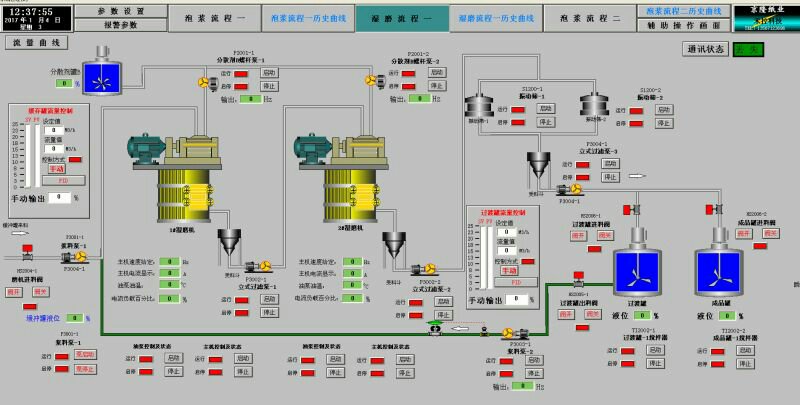

• Compact structure, suitable height, easy operation and maintenance, stable production, automatic controlling is optional.

Other Product Recommend

If our LXMC Series Ultra Fine Wet Stirring Mill is not meeting your needs, we have another series of ore material powder grinding mills for your choice.

Manufacturer Introduction Of LXMC Series Ultra Fine Wet Stirring Mill

 SHANGHAI CLIRIK MACHINERY CO., LTD located in PUDONG New district of Shanghai China as a professional enterprise, which specializes in research, manufacture and sales of all kinds of mining equipment. Our company has already formed a full set of modern production lines, equipped with intelligent, standardized testing and controlling laboratories, owned a professional team for R&D, production, sales and service.

FAQ

Q: Are you a middle man or manufacturer?
A: Our Shanghai Clirik Machinery is a professional mining equipment manufacturer.

Q: How to get in touch with you?
A: You can leave your inquiry below this product, or you can call us 86-021-2023617.

Q: Where is your company?
A: We are in PuDong new area, HeQing twon, FuQing road, No. 19, Shanghai, China.
