PFW Impact Crusher

Table of Contents

impact crusher

PFW Impact Crusher

Finished Size : 0-200 mm

Processing Ability 90-450t/h

Max feeding Size : 800 mm

MQQ : 1 set

Price: 5000 – 30000 $

Range Of Application:  Calcium Carbonate 、Limestone 、Kaolin、Gypsum 、Bentonite、Dolomite…

Product Parameter

Product specification of PFW Impact Crusher

Model Rotor Φ×L(mm) Feed Opening(mm) Max Feeding(mm) Capacity(t/h) Power(kw) Motor Model Machine Size(mm)
PFW1214II F1150 × 1400 1100 × 1430 500 130-200 4-132 Y315M-4/132 2400 × 2310 × 2550
PFW1315II F1300 × 1500 1200 × 1530 600 180-320 4-160 Y315L1-4 / 160 2700 × 2570 × 2800
PFW1318II F1300 × 1800 1200 × 1830 700 240-400 4-200 Y315L2-4 / 200 2700 × 2870 × 2800
PFW1415II F1400 × 1500 1450 × 1530 800 240-450 4-200 Y315L2-4 / 200 3000 × 2700 × 3070
PFW1214Ⅲ F1150 × 1400 570 × 1430 250 90-170 4-132 Y315M-4/132 2550 × 2310 × 2100
PFW1315Ⅲ F1300 × 1500 625 × 1530 300 180-270 4-160 Y315L1-4 / 160 2960 × 2570 × 2380
PFW1318Ⅲ F1300 × 1800 625 × 1830 300 220-300 4-200 Y315L2-4 / 200 2960 × 2870 × 2380
PFW1415Ⅲ F1400 × 1500 800 × 1530 350 280-350 4-200 Y315L2-4 / 200 3120 × 2650 × 2660

Product Applation

Impact Crusher is mainly used to crush kinds of mining stones primarily and the largest compression resistance of the material to be crushed is 320Mpa. The jaw crusher is widely used in mining, metall-urgical industry, building material, highway, railway and chemical industry. This machine can break materials into medium size and fine size.

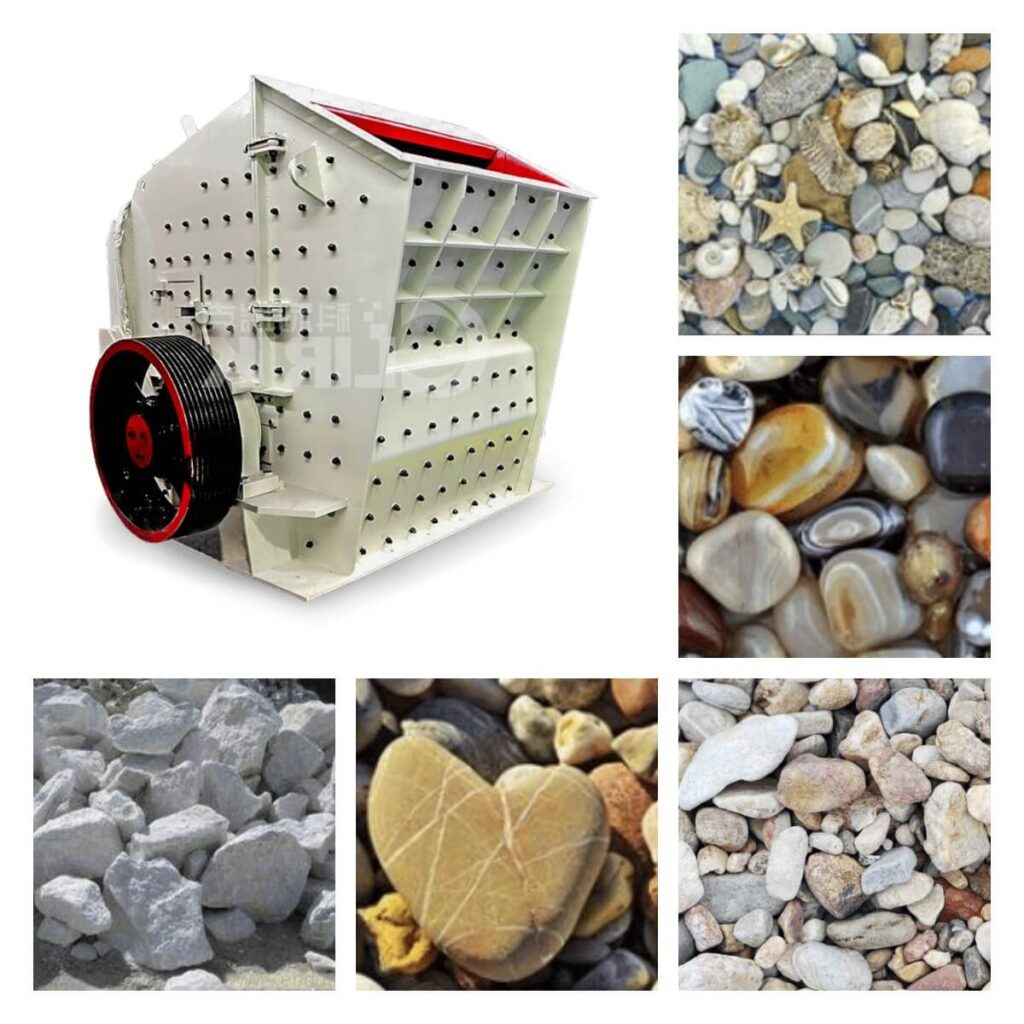

 Impact crusher application

Product Advantage

PFW Impact Crusher

1.Wide range of applications.

2.CE, ISO9001.

3.High capacity, 5-100t/h.

4.Uniform particle size.

5.High crushing ratio.

6.Long lifecyle of spare parts.

7.Testing impact crusher before delivery is available.

Working Principle

The PFW impact crushers are new high-efficiency hydraulic control impact crushers developed on the basis of international advanced technology for impact crushers, mainly to ease maintenance operation of impact crushers, improve the service life of wearing parts and the equipment performance, and simultaneously reduce the crusher, and simultaneously extend the service life of quick—wear parts, improve device performance and reduce the processing cost of soft materials.

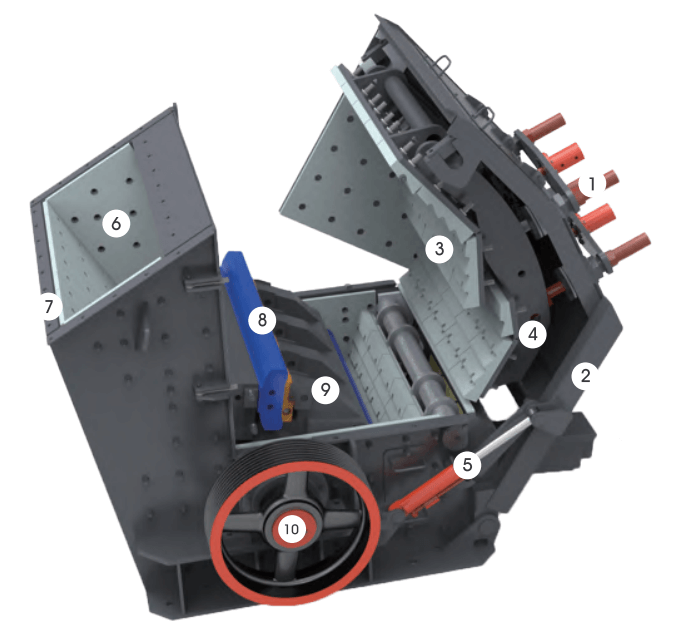

impact crusher principle
impact crusher principle

The PFW impact crushers have innovatively designed the rotors and impact frames, introduced a hydraulic system for adjustment control and top opening operation, and simultaneously developed coarse and intermediate crushing models according to users‘ demands to satisfy different job requirements.

Other Products Offered

In addition to PFW Impact Crusher, we also have other grinding equipment for you to choose.

Micro Powder grinding mill
High Pressure Suspension Grinding Mill
Ultrafine vertical powder grinding mill

Company Profile

PFW Impact crusher manufacturer profile :

SHANGHAI CLIRIK MACHINERY CO., LTD located in PUDONG New district of Shanghai china, as a pioneer enterprise, which is specializing in research, manufacture and sales of all kinds of grinding mill, all kinds of crushers from coarse grinding mill, fine grinding mill and ultra fine grinding mill, grinding mill related equipment, such as powder modifying machine, powder packing machine.powder conveying system, etc. We have devoted into grinding field for more than 30 years, we belive only focus can be professional.

Our company has already formed a full set of modern production line, equipped with intelligent, standardized testing and controlling laboratories, owned a professional team for R&D, production, sales and service.

Service team
Service team

Service for you :

1.One year guarantee for whole machine except for wear parts.

2.24 hours technical support by email.

3.Calling service.

4.User manual available.

5.Reminding for the service life of the wearing parts.

5.Reminding for the service life of the wearing parts.

5.Reminding for the service life of the wearing parts

6.Installation guide for clients from both China and abroad.

7.Maintance and replacement service.

8.Whole process trainling and guidance from our technicians.

High quality of after-sales service symbolizes our brand and ability. We pursue not only good quality products, but also best after sales service. Your satisfaction is our final purpose.
