Ball Mill

Table of Contents

Ball mill

Ball Mill

Capacity: 20-200t/h

Max feeding size: 25mm

Processing ability: 20-200t/h

MQQ : 1 set

Price: 10000 – 50000 $

Range of application: Barite, quartz, feldspar, mica, calcite, talc, apatite, gypsum, fluorite, limestone, dolomite, diatomite, ceramic soil, clay, marble, granite, fly ash, kaolin, calcium carbonate, slag, bauxite, glass, etc.

Product Parameter Of Ball Mill

Model

Rotary speed(r/min)

weight(t)

Input size(mm)

Discharge size(mm)

Capacity(t/h)

Motor power (kw)

Weight (t)

Ф900×1800

39

1.5

≤20

0.075-0.89

0.8-2

18.5

4.6

Ф900×1800

39

2.7

≤20

0.075-0.89

1-4

22

5.6

Ф1200×3000

36

3.5

≤25

0.074-0.4

1.6-5

37

12.8

Ф1200×4500

32

5

≤25

0.074-0.4

1.6-5.8

55

13.8

Ф1500×3000

27

7.5

≤25

0.074-0.4

2-5

75

15.6

Ф1500×5700

28

12

≤25

0.074-0.4

3.5-6

130

24.7

Ф1830×3000

25

11

≤25

0.074-0.4

4-10

130

28

Ф1830×6400

24

21

≤25

0.074-0.4

7-16

210

34

Ф1830×7000

24

23

≤25

0.074-0.4

8-18

245

36

Ф2100×3600

23

19

≤25

0.074-0.4

10-36

210

46

Ф2200×4500

21

27

≤25

0.074-0.4

12-23

280

48.5

Ф2200×6500

21

35

≤25

0.074-0.4

14-26

380

52.8

Ф2200×7000

21

35

≤25

0.074-0.4

15-28

380

54

Ф2200×7500

21

35

≤25

0.074-0.4

15-30

380

56

Ф2400×4500

21

30

≤25

0.074-0.4

18-45

320

65

Ф2400×8000

20

36

≤25

0.074-0.4

20-48

410

81

Ф2700×3600

21

39

≤25

0.074-0.4

19-75

400

83

Ф2700×4000

20

40

≤25

0.074-0.4

20-78

400

85

Ф2700×4500

20

48

≤25

0.074-0.4

22-85

430

89

Ф3200×4500

18

65

≤25

0.074-0.4

29-140

800

137

Ф3200×5400

18

81.6

≤25

0.074-0.4

30-180

800-1000

146

Ф3600×4500

17

88

≤25

0.074-0.4

35-210

1000

190

Ф3600×6000

17

117

≤25

0.074-0.4

38-240

1250-1500

220

Ф3600×8500

17

144

≤25

0.074-0.4

45-260

1800

260



Product Introduction Of Ball Mill

Ball mill is suitable for grinding all kinds of ore and other materials, is widely used in mineral processing, building materials and chemical industries, can be divided into dry and wet grinding two ways.  According to the different way of ore discharge, it can be divided into two types: lattice type and overflow type.

Ball mill is the key equipment for material crushing after being crushed.  It is widely used in cement, silicate products, new building materials, refractory materials, chemical fertilizer, black and non-ferrous metal dressing and glass ceramics and other production industries.

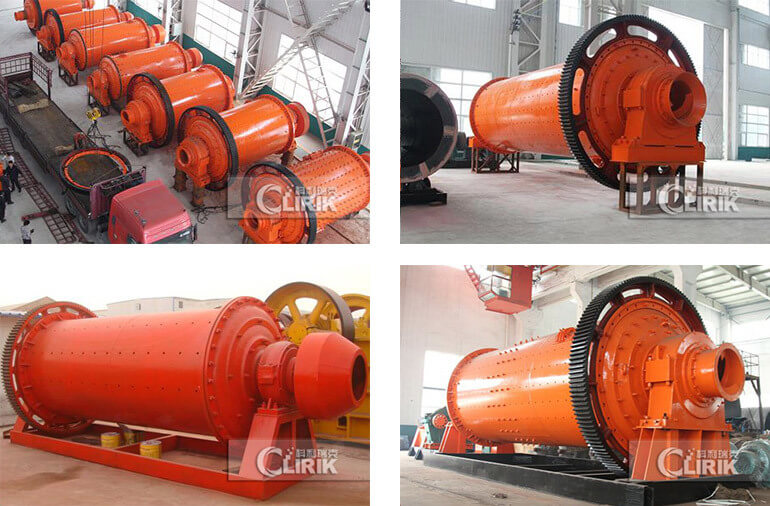

Ball Mill
Ball Mill

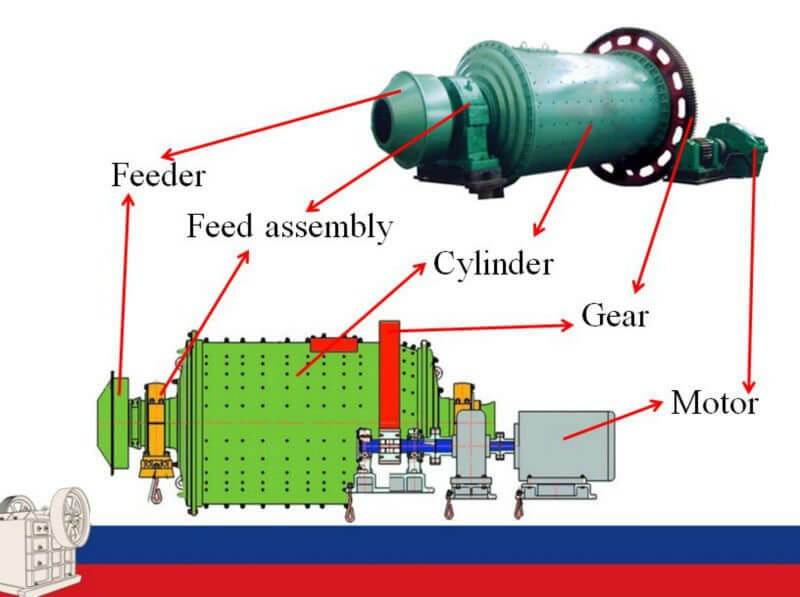

Working Principle Of Ball Mil

Ball mill is composed of feeding department, discharging department, rotary department, transmission department (reducer, small transmission gear, motor, electric control) and other main parts. The hollow shaft is made of cast steel, and the inner lining can be removed and replaced. The large rotary gear is made of casting gear hobbing. The inner cylinder is inlaid with wear-resisting lining board, which has good wear resistance.

Ball mill for horizontal cylindrical rotary device, along the outer gear transmission, two bin, lattice energy-saving ball mill. The material from the feeding device through the feeding hollow shaft spiral evenly into the mill bin, the bin has stepped lining plate or corrugated lining plate, loaded with different specifications of steel balls, cylinder rotation produces centrifugal force will bring the steel ball to a certain height after falling, the material has a heavy blow and grinding effect. After the material is roughed in the warehouse, it enters the second warehouse through the single-layer separation board. The warehouse is inlaid with a flat lining board and a steel ball to grind the material further. The powder is discharged through the unloading grate to complete the grinding operation.

ball mill working principle
ball mill working principle

Product Advantages Of Ball Mill

1, Environmental protection, excellent sealing, negative pressure operation, effectively avoid dust flying.


2, Substantial production capacity, to meet the requirements of contemporary large-scale industrial

production.


3, Material adaptability, crushing ratio, can reach more than 300.


4, Both dry operations can also have a moist operation.


5, Simple structure, stable operation, convenient maintenance and management, long service life.


6, Ball mill price economic benefits, cost-effective.

Manufacturer Introduction Of Ball Mill

Ball mill manufacturer Shanghai Clirik Machinery Co., Ltd., is a professional enterprise specializing in all kinds of mining equipment research and development, production and sales.

Our company has a full set of modern production lines, equipped with intelligent, standardized testing and control laboratory, has a research and development, production, sales, service in one of the professional team.

company
company

Our company’s products cover micro powder grinding mill, high Pressure Suspension Grinding Mill, European first edition coarse crusher, hammer crusher, jaw crusher, screw conveyor, bucket elevator, etc. Widely used in mining, building materials, chemical industry, metallurgy, transportation, water conservation and other industries.

Specially we independently developed HGM /CLUM series micro powder grinding mill, which are not only renowned in domestic market, but also have been sold widely in Eastern Europe, Middle East, Africa, South Asia, Southeast Asia, Oceania, and America, etc.

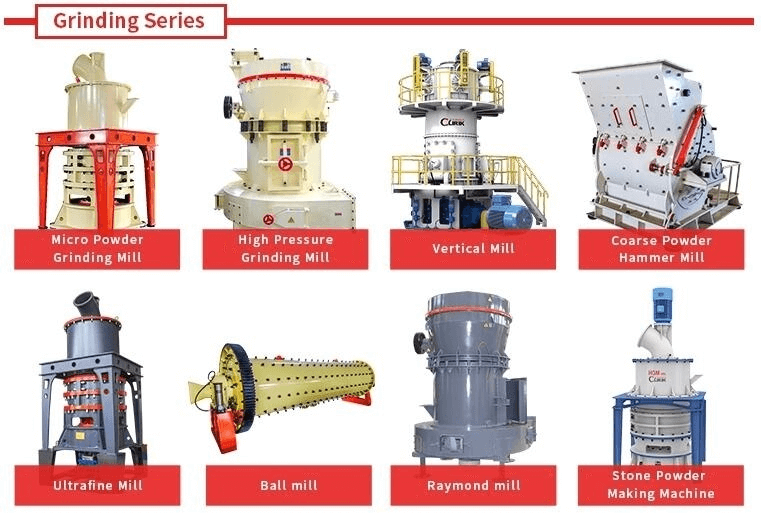

Clirik  mine mill recommended
Clirik mine mill recommended

FAQ

1. What advantages does your ball mill have?

The main advantage of our ball mill over other kinds of mills is that you can grind a friable or crystalline material to fine average particle size and classify in a very narrow particle size range at the same time.

2. What particle size range does your ball mill produce?

Typically the Clirik ball mill will grind friable or crystalline materials down to the 0.075 -0.4/0.89 mm average particle size range. Particles larger than 10 microns are generally hard-to-fracture polymers such as toner compounds or hard waxes, and some organic materials, but if a larger size is wanted, many products can be ground larger than 10 microns by reducing power to the mill or by increasing the rate of feed. Some products are simply polished to remove sharp edges by running at elevated feed rates with low grinding pressure, a process that changes how the material compacts.

*If you would like more details,please contact our customer service.
