Bamboo powder High Pressure Suspension Grinding Mill

Table of Contents

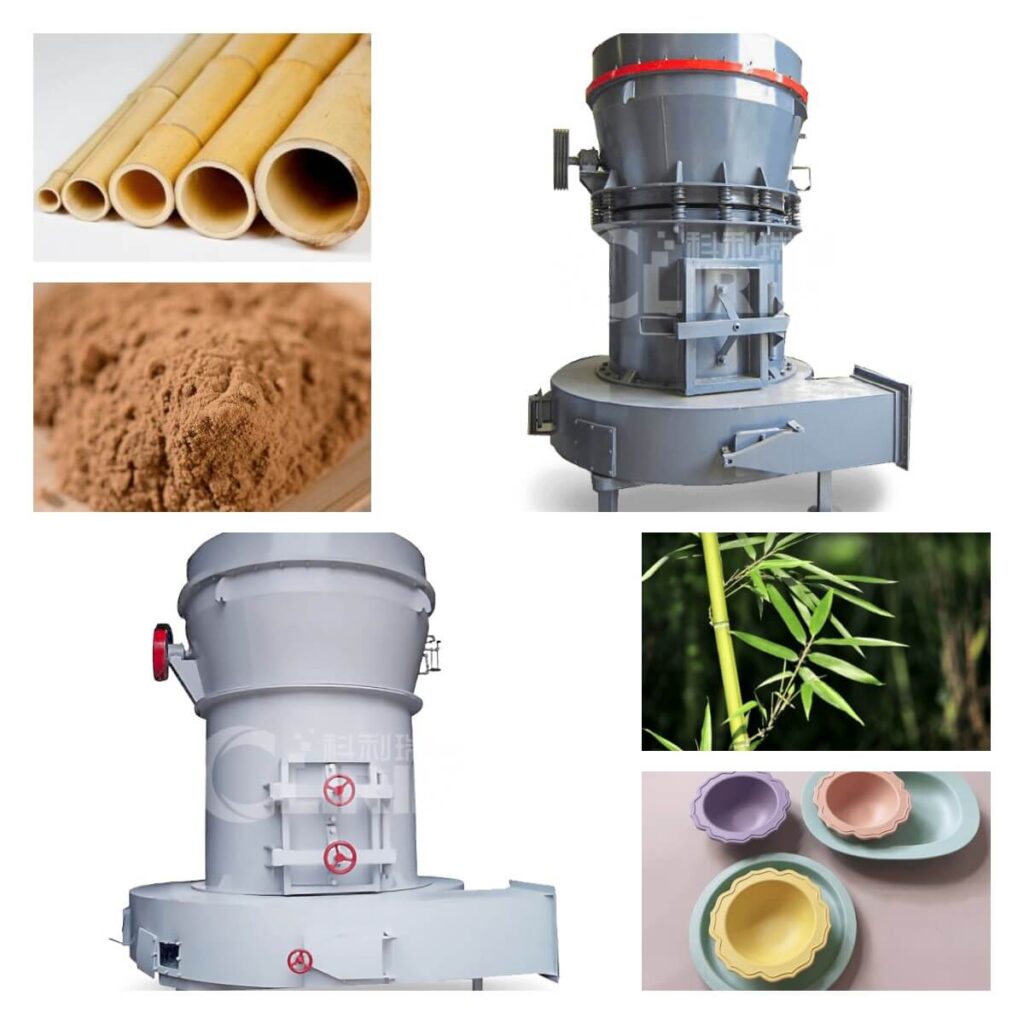

Product introduction of bamboo powder high pressure suspension grinding mill

Bamboo powder high pressure suspension grinding mill is commonly used for grinding bamboo powder.It can grind bamboo to 50-325 mesh.

The ground bamboo powder can be used as raw material for paper making, building materials, coatings, artificial leather, plastic wood products, insulation materials, cat litter, charcoal and other items.

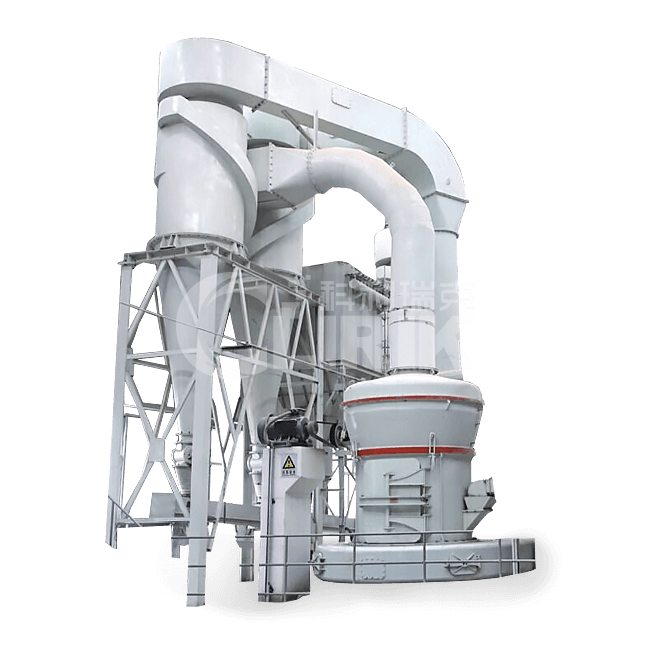

Bamboo powder High Pressure Suspension Grinding Mill

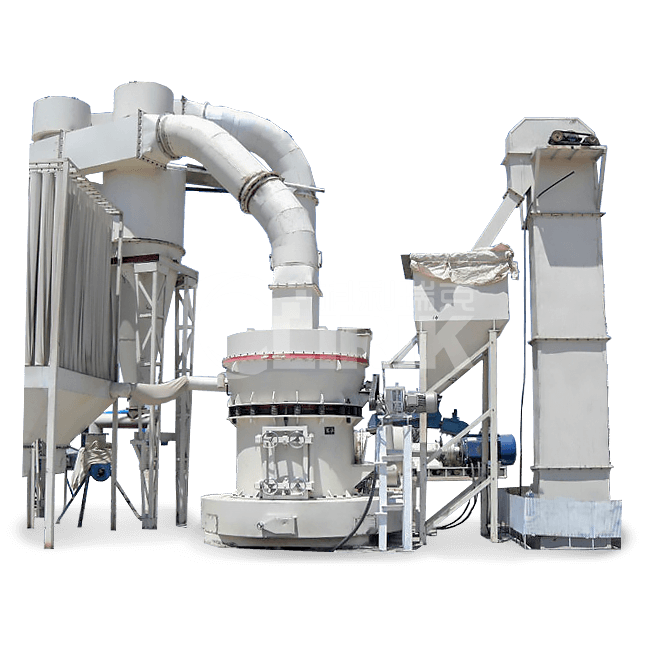

Bamboo powder High Pressure Suspension Grinding Mill

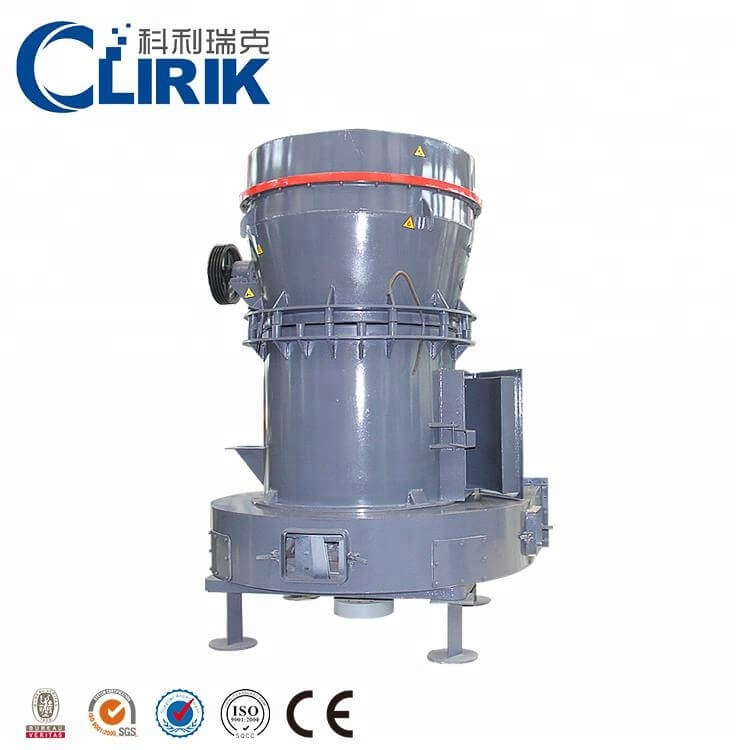

Bamboo Powder High Pressure Suspension Grinding Mill

Finished Size: 50-325 mesh

Power: 18.5-132 kw

Processing Ability: 1-30t/h

Max feeding Size: 20 mm

MQQ: 1 Set

Price: 9999-99999 $

Range Of Application: Bamboo, Diatomite, Calcium Carbonate, Talc, Kaolin, Gypsum, Kaolin, Carbon Black, Bentonite, Calcite, Limestone…

Product advantage of bamboo powder high pressure suspension grinding mill

1. The bamboo powder high pressure suspension grinding mill force is large.

The grinding roller assembly of the high-pressure grinding mill adopts a high-pressure spring device to increase the grinding force.

The grinding force of each grinding roller assembly can be increased by 500Kg on the original basis, which greatly improves the milling efficiency.

2. The grinding area is large, and the grinding height of the grinding roller and grinding ring is increased from 160mm to 200mm.

3. Bamboo powder high pressure suspension grinding mill large amount of shovel.

4. Bamboo powder high pressure roller mill high classification accuracy.

5. Bamboo high pressure suspension mill double cyclone collector.

6. The main engine adopts a buffer device, and the structure of the main casing is optimized to ensure stable operation and low noise.

7. The main engine and analysis machine adopt a quick-change pressing device, which is convenient for maintenance.

8. The residual wind is collected by cloth bags, and there is no dust pollution.

9. The blower of the high pressure grinding mill adopts a high-pressure centrifugal fan, and the air volume and air pressure are increased, which greatly improves the pneumatic conveying capacity.

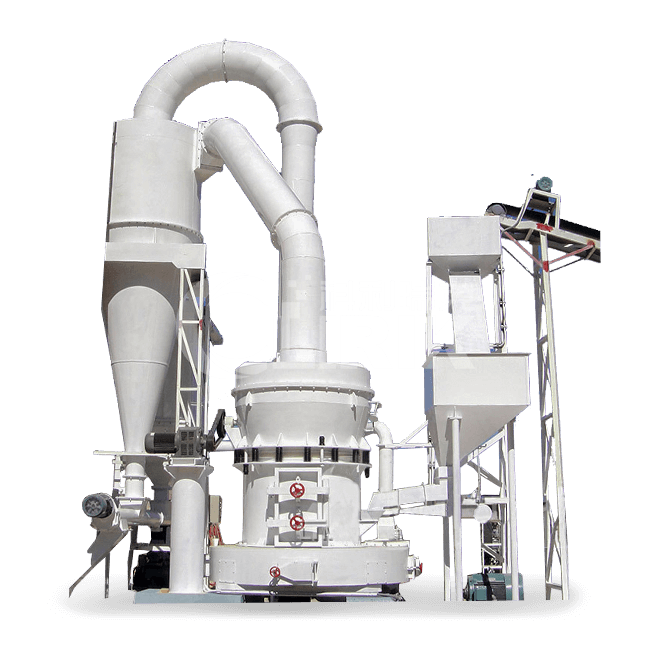

Bamboo powder High Pressure Suspension Grinding Mill
Bamboo powder High Pressure Suspension Grinding Mill

Working principle of bamboo powder high pressure suspension grinding mill

The bamboo powder high pressure suspension grinding mill is mainly composed of the main engine, the blower, the ultra-fineness analyzer, the finished cyclone powder collector, the bag filter and the connecting air duct pipes.

In the grinding chamber of the bamboo powder high pressure suspension grinding mill, the grinding roller assembly is suspended on the grinding roller hanger through the cross arm shaft, and the grinding roller hanger is fixedly connected with the main shaft and the blade holder.

The pressure spring is tightly pressed on the outer end of the cantilever of the bearing chamber of the grinding roller by the tension rod, and the cross-arm shaft is used as the supporting point, and the roller is tightly pressed on the inner surface of the grinding ring by the spring pressure.

When the motor rotates through the transmission device, the blade mounted on the blade holder rotates synchronously with the grinding roller.

The grinding rollers rotate around themselves while rolling on the inner circular surface of the grinding ring.

The analysis machine drives the impeller of the analysis machine to rotate through the motor transmission device, and the speed adjustment of the analysis machine determines the fineness of the powder.

Bamboo becomes bamboo powder after this series of grinding process, and then it is used in various fields.

The reasons for choosing Bamboo powder high pressure suspension grinding mill are simple operation, easy maintenance, high economic benefit and environmental protection.

Product parameter of bamboo powder high pressure suspension grinding mill

Model Roller Ring Feeding
Size(mm)
Finished
Size(mm)
Mill System
Power(KW)
Capacity
(t/h)
Overall
Dimension (mm)
Quantity
(piece)
Diameter
(mm)
Height
(mm)
Inner
Diameter
(mm)
Height
(mm)
YGM7815 3 260 150 780 150 15 0.613-0.033 35.7 1.0-3.0 4300*3500*5100
YGM9517 4 310 170 950 170 25 0.613-0.033 72.65 2.1-5.6 7100*5900*7900
YGM1280 3 370 240 1170 240 20 0.613-0.033 145.15 4.5-12.0 9300*5600*8200
YGM1300 4 410 280 1270 280 20 0.613-0.033 202.15 6.5-16.0 9100*8200*8400
YGM1620 4 450 300 1500 300 20 0.613-0.033 322.2 8.0-20.0 12500*5700*10500
YGM1720 4 510 300 1720 300 35 0.613-0.033 450 10.5-28.0 11550*9500*1050

Production application of bamboo powder high pressure suspension grinding mill

Bamboo powder high pressure suspension grinding mill can grind non-flammable and non-explosive materials under 7 (the Moh’s hardness), such as quartz, dolomite, carbon black, feldspar, calcite, talcum, barite, fluorite, iron ore, copper ore quartz, especially for slag, cement clinker, zircon sand, fly ash and carborundum, coal, etc.

Chalk
Chalk
Coal
Coal
Dolomite
Dolomite
Ceramic raw materials
Ceramic raw materials
Construction waste
Construction waste
Coconut Shell
Coconut Shell

Other bamboo powder equipment

Besides the YGM series high pressure suspension grinding mill, we have many other types of mill suitable for bamboo powder grinding.

Such as: HGM series ultrafine powder grinding mill, CLUM series ultrafine vertical roller mill, CLRM series enhanced roller grinding mill.
