Talc Powder Ultrafine Grinding Mill

Talc powder ultrafine grinding mill

Modle : HGM Series

Finished Size: 150-2500 mesh

Processing Ability: 1-45 t/h

Max Feeding Size: 10-25 mm

MQQ : 1 Set

Price: 59999- 159999 $

Range Of Application: Talc,Calcium Carbonate ,Limestone ,Kaolin,Gypsum ,Bentonite,Dolomite…

Product Parameter Of Talc Powder Ultrafine Grinding Mill

Parameter 1

Model HGM80 HGM80A HGM90L HGM100L-Ⅱ HGM100P HGM125L HGM1680L
Ring Diameter(mm) 800 800 900 1000 1000 1250 1680
Ring Number (PCS) 3 3 4 4 4 4 4
Input Size (mm) ≤10 ≤10 ≤10 ≤15 ≤15 ≤20 ≤20
Adjustable range of finished product (mesh) 150-3000 150-3000 150-3000 150-3000 150-3000 150-3000 150-3000
Capacity (t/h) 0.5-5.5 0.5-5.5 0.8-6.5 1.2-10 1.2-11 2.5-20 5-45
Outlet Size L*W*H (mm) 8605*4139*6050 10454*3393*6626 11735*3952*7525 14507*3633*7562 14362*4200*7562 19261*4406*8591 25067*5414*9007
Main motor power (kw) 75 75 55*2 132/75*2 132/75*2 185 315

Parameter 2

Unit KW HGM80 HGM90L HGM100L/HGM100P HGM125L HGM168L
Main Unit 75 2*45 132-150 185-200 315
Classifier 18.5 18.5-30 30-37 75 132
Blower 45 55 75 2*45-2*55 2*75-2*90
Crusher 18.5 18.5 18.5 45 75
Bucket Elevator 3 3 4 4 7.5
BeltConveyor Feeder 1.5 1.5 1.5 1.5 2
Discharging Valve 2*0.75 1.1 1.1 1.5 2*1.5
Air compressor 11 15 22 37 55

Product Overview Of Talc Powder Ultrafine Grinding Mill

Talc powder ultrafine grinding mill is designed by our R&D department on the basis of multiple innovation and testing. It has been proved by thousands of customers that our machine has outstanding features,stable quality,easy operation and maintenance.It is specially used for grinding ultra-fine powder equipment of non-flammable and explosive ore with Mohs hardness below 6.

Processing Materials

Talc,  calcium carbonate ,calcite, chalk, limestone, dolomite, kaolin, bentonite,  mica, magnesite, illite, pyrophyllite and vermiculite, sepiolite, attapulgite, rectorite, diatomite, barite, gypsum, alunite, graphite,fluorite, rockphosphate, Kalium ore, pumice, etc., totally more than 100 kinds of materials.

Application Field

Talc powder ultrafine grinding mill widely used in paint, paper, pigment, rubber, plastic, filler, cosmetics, chemical supplies and other industries.

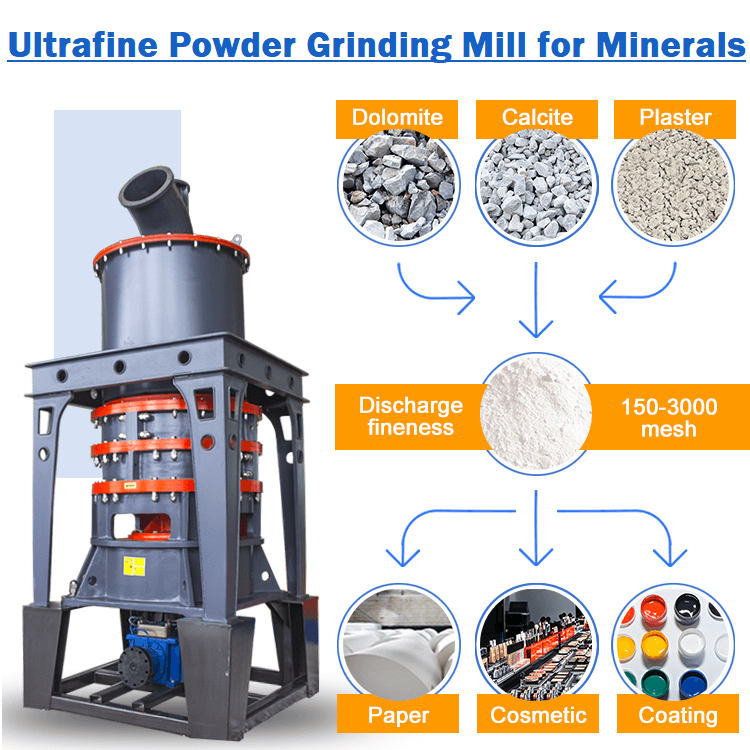

Talc powder ultrafine grinding mill Usage and Processing material
Talc powder ultrafine grinding mill Usage and Processing material

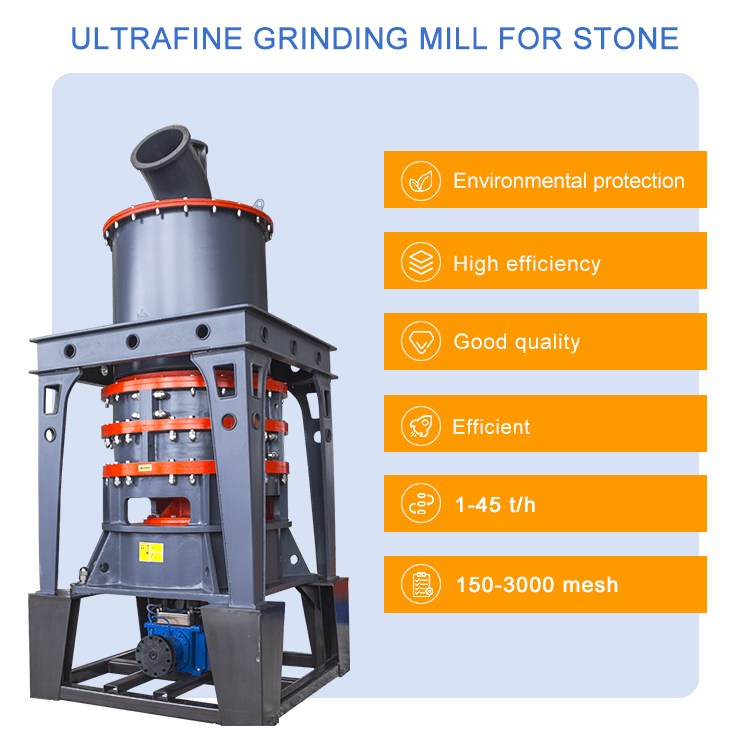

Talc powder ultrafine grinidng mill advantage
Talc powder ultrafine grinidng mill advantage

Product Advantage

1.Talc powder ultrafine grinding mill with the same fineness and power consumption, the output is 30% higher than that of jet mill and ball mill.

2.Low wear parts loss, all wear parts are made of high wear resistant materials, prolong the service life of grinding equipment.

3.The fineness of the finished product can reach 325-3000 mesh range.

4.Environmental protection, the use of high efficiency pulse type dust collector, dust-free in the operation process of pollution, equipped with muffler and anechoic chamber, reduce noise, in line with international environmental standards of production, to the surrounding environment has played a role in environmental protection.

Working Principle Of Talc Powder Ultrafine Grinding Mill

Talc powder ultrafine grinding mill mainly consist of main unit, classifier, powder collector, dust cleaner, blower, muffler, sound-proof room, crusher, bucket elevator, storage hopper, and vibrating feeder.

After crusher by hammer crusher ,the large materials become small ones and are sent to storage hopper by elevator,and then evenly sent to the upper distribution plate of the turn plate of the turn plate by vibrating feeder and sloping feeding pipe.

When the talc powder ultrafine grinding mill is at work, the main bearing and each dial are driven by electricity of main equipment through reducer, and all the grinding rollers are rolling in the ring channels driving by dial through plunger. The materials are driven to the edge of the turn plate by the centrifugal force and fall down into the grinding chambers where the materials are repeatedly pressed.​ crushed and grinded by the rollers. Then the materials fall into multiple layers and to be crushed and ground continuously to micro powder.

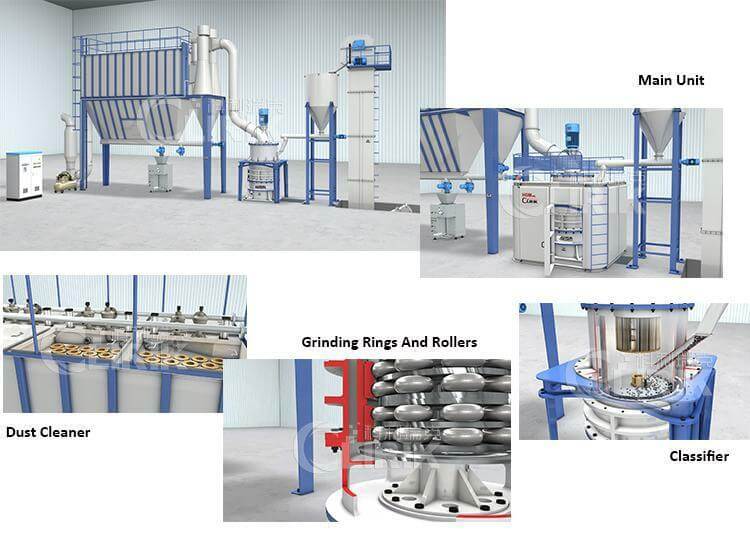

Talc powder ultrafien grinding mill working principle
Talc powder ultrafien grinding mill working principle

The high-pressure air blower constantly inhales air within the grinding mill and, in turn, the airflow with crushed materials are brought to the classifier whose high-speed impeller will screen the airflow: the unqualified particle size will fall and return to the mill for being around while the qualified particle size mixed with air will go into the cyclone powder collector.

Most of the qualified powders will fall and exit from the discharging valve at the bottom;a small proportion of the fine powders, with airflow, moves to the dust cleaner, and clings to the surface of the filter bags. At the same time, the fine powders, with airflow, moves to by the sudden vibration of the filter bags, which is caused by the instantly ejected high-pressure gas controlled by the pulse valve. The materials from the above two lots are sent by the conveyor at the bottom to get finished powders packed. In addition, filtered clean air will be emitted from the air outlet of muffler in the end.

Manufacturer Introduction Of Talc Powder Ultrafine Grinding Mill

Our Company

SHANGHAI CLIRIK MACHINERY CO., LTD located in PUDONG New district of Shanghai China as a professional enterprise, which specializes in research, manufacture and sales of all kinds of mining equipment. Our company has already formed a full set of modern production lines, equipped with intelligent, standardized testing and controlling laboratories, owned a professional team for R&D, production, sales and service.

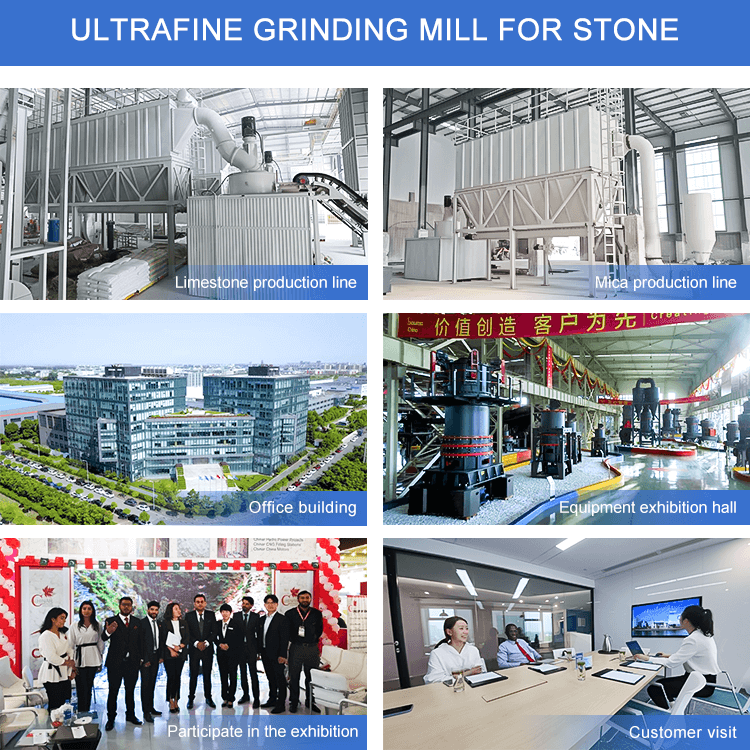

Clirik company show

Our Service

  • One year guarantee for the whole machine except for wear parts.
  • 24 hours technical support by email.
  •  Calling service.
  • User manual available.
  • Reminding for the service life of the wearing parts.
  • Installation guide for clients from both China and abroad.
  • Maintenance and replacement service.
  • Whole process training and guidance from our technicians.

Customer Case Display

Superfine powder grinding mill customer on-site display. If you need to learn more about the case and product information, you can leave a message to us. Our sales manager will send you a detailed case, product, quotation list.

ultrafine powder grinding mill case
ultrafine powder grinding mill case

FAQ

Because there are 5 different kinds of talc powder ultrafine grinding mills, so our talc powder ultrafine grinding mills unit has different prices, I need to ask you for some details for sending you the more suitable quotation:

1.Which kind of material are you going to grind?
( Talc;Dolomite; Calcite; Quartz; Basalt; Barite; Feldspar ; Gravel; Bentonite; Gypsum; Granite; Coal; Slag; Pebble; Others ).

2.What’s the production capacity you want? How many tons or cubic meters per hour?
( > 100 TPH > 50 TPH > 30 TPH > 10 TPH > 1 TPH <​ 1 TPH).

3.What’s the granularity of the final products you need?
(in milimeter, micron or mesh).

4.What’s the max input size of the material?
(In inch, centimeter or millimeter).
