Powder Packing Machine

Product Description of Powder packing machine

Powder packing machine usually has two types: valve type and opening type, it is adopted with technology of electronically automatic measurement, variable-feed and frequency-converted function; it can be designed to meet customer’s specific requirements according to raw materials characteristics, fineness and flow ability etc. The powder packing machine is widely used in calcite (GCC), black carbon, talc, feldspar, kaolin, bentonite, AL(OH)3, carborundum, quartz, barite, food etc.

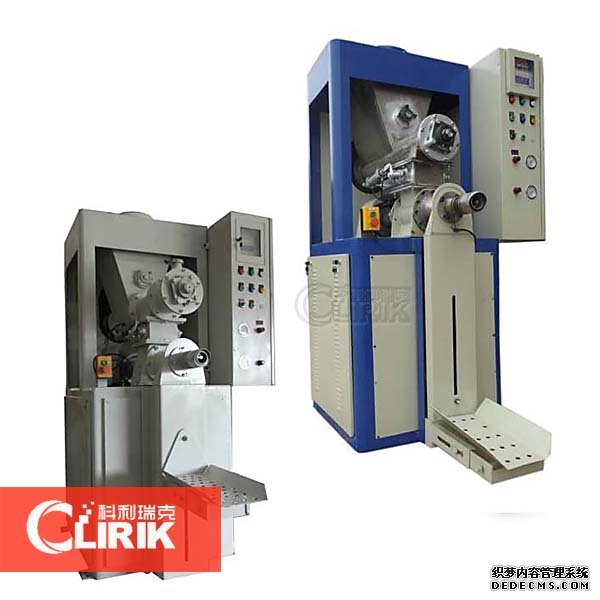

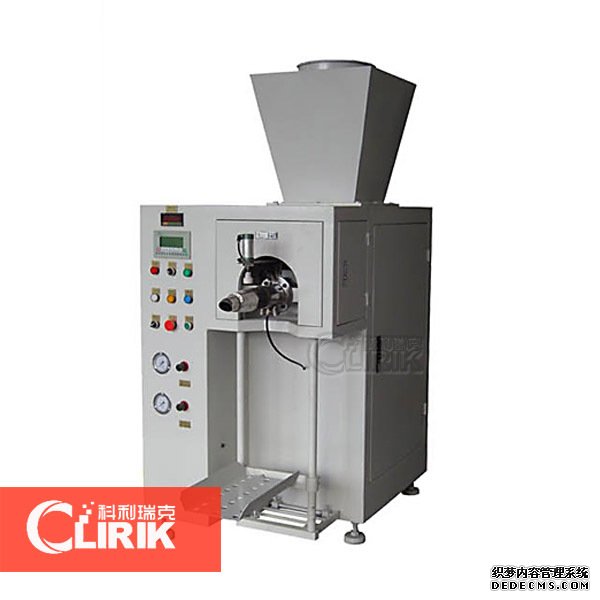

CBF-159A Valve-port powder packing machine

powder packing machine

SPECIFICATIONS

Type

CBF-159A

Bag weight

3-50 KG

Accuracy

±0.2~0.5%

Filling speed

3-5 bags/min, (25KG)

Power

380V, 50HZ, 4KW

Air consumption

P≥0.6Mpa, Q≥0.4m3/min

Equipment weight

420KG

Dimension

800x1400x1850 mm (W*L*H)


CBF-159B Valve-port powder packing machine

powder packing machine

SPECIFICATIONS

Type

CBF-159B

Bag weight

1-60 KG

Accuracy

±0.1~0.3%

Filling speed

3-5 bags/min, (25KG)

Power

380V, 50HZ, 8KW

Air consumption

P≥0.6Mpa, Q≥0.4m3/min

Equipment weight

900KG

Dimension

850x1500x2155 mm (W*L*H)

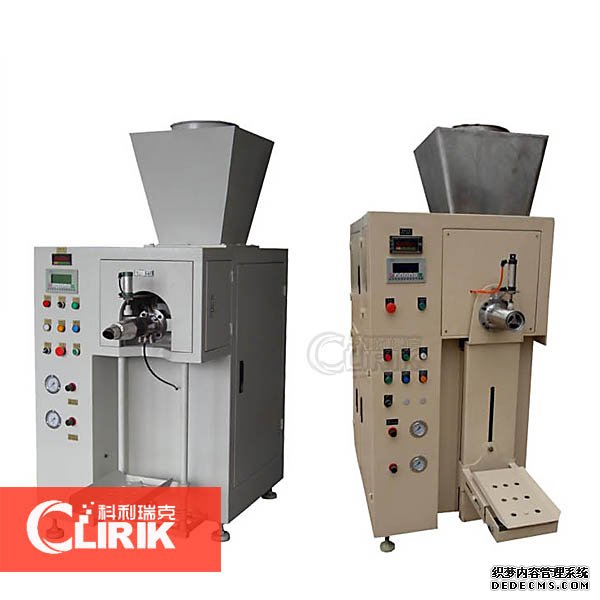

CBC-200C Open-valve powder packing machine

powder packing machine

SPECIFICATIONS

Type

CBC-200C

Bag weight

1-50 KG

Accuracy

±0.2~0.5%

Filling speed

3-5 bags/min, (25KG)

Power

380V, 50HZ, 3KW

Air consumption

P≥0.6Mpa, Q≥0.4m3/min

Equipment weight

550KG

Dimension

3300x2000x2755 mm (W*L*H)

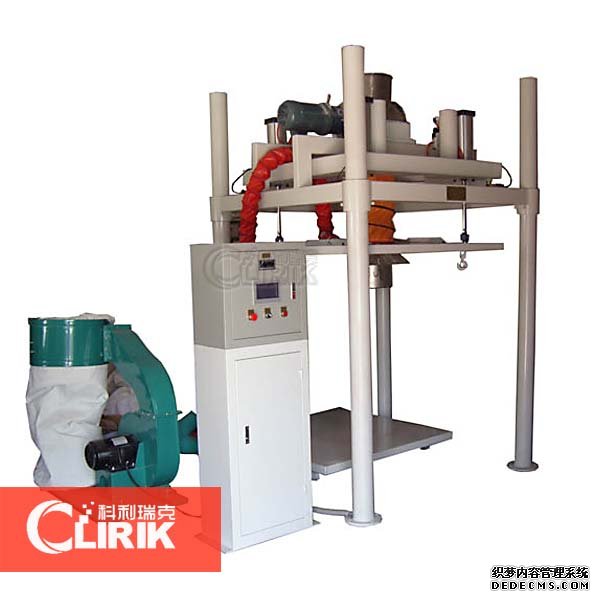

 CBC-1000D Tonnage-sack packing machine

powder packing machine

SPECIFICATIONS

Type

CBC-1000D

Bag weight

1-2000 KG

Accuracy

±0.2~0.5%

Filling speed

7-10 bags/min, (1 ton)

Power

380V, 50HZ, 3KW

Air consumption

P≥0.6Mpa, Q≥0.4m3/min

Equipment weight

850KG

Dimension

880x1800x2500 mm (W*L*H)
