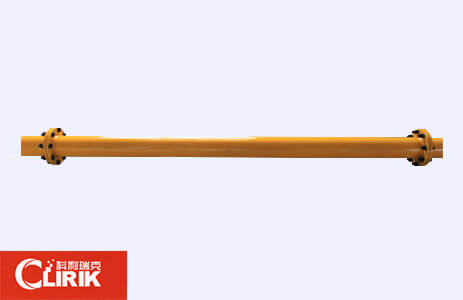

Air Conveying System

Table of Contents

Air Conveying System

Air Conveying System

Processing ability: 0.1-50t/h

Fineness: ≥60 mesh

Max feeding size: 1-65m³/min

Range of application: Gas ,Powder

Product Parameter Of Air Conveying System

Model

ST-LXB-0.5

ST-LXB-2

ST-LXB-5

ST-LXB-10

ST-LXB-15

ST-LXB-20

ST-LXB-30

ST-LXB-40

ST-LXB-50

Capacity(t/h)

0.1~0.5

0.5~2

2~5

5~10

10~15

15~20

20~30

30~40

40~50

blast capacity

(m³/min)

1.0~3.0

8.0~12

10~15

12~18

14~23

18~30

20~38

35~50

40~65

Inlet pipe diameter

DN40/

DN50

DN100/

DN125

DN125/

DN150

DN125/

DN150

DN125/

DN150

DN150/

DN175

DN150/

DN200

DN200/

DN250

DN200/

DN300

velocity in pipe (m/s)

13~16

Pressure

(kpa)

≤78

Body material

 Cast iron, cast steel, stainless

Motor(kw)

0.5

1.5

2.2

2.2

2.2

3.0

3.0

3.0

4.0

Weight (kg)

650

770

960

1100

1100

1200

1300

1450

1600

Product Overview Of Air Conveying System

An air conveying system is with long life, low operation and maintenance costs, small size, easy control, widely used in mining, building materials, coal, chemical and other industries.

The air conveying system, which takes Roots blower as the air source, is designed specifically for close distance and continuous transporting. Transporting distances is generally horizontal distance≤ 300m, vertical distance 30m. It is suitable for conveying powder specific gravity ≤1.3, fineness≥60 mesh, moisture content≤5%, under the highest instantaneous temperature≤250℃working conditions, the maximum throughput is 60 t/h. It also can be used in the nesting conditions for single-point or multi-point requirements.

Working Principle Of Air Conveying System

The Air Conveying System uses the principle of gas-solid flow fluidization, jet technology, combined with differential pressure principle, to finish this working progress. Taking the electric rotary feeder as the feeding device, the material is evenly put into the mixing chamber. At the same time, the Roots blower jet the high-speed air flow of materials into the acceleration chamber, the suspended flow into the conveying pipeline transport to in silos, according to the separation by the feed gas, powder falls under silo gases into the atmosphere, in order to achieve a powder material handling purposes.

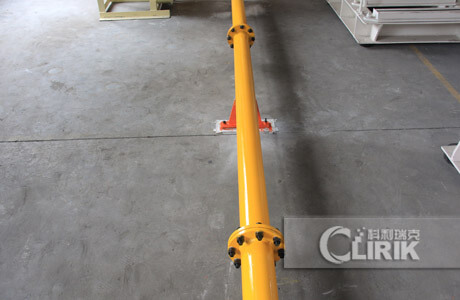

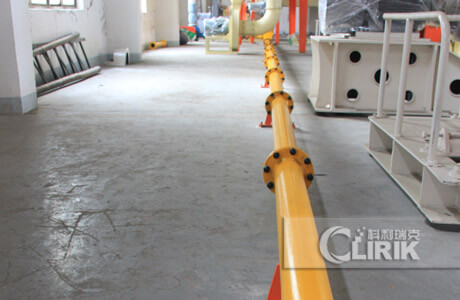

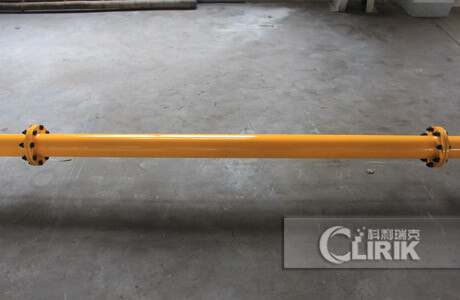

Air Conveying System

Advantage of Air Conveying System

1. Variable arrangement of the pipe makes the production craft process more reasonable.

2. The system is sealed and lead to few flying dust, it benefit for environment protection.

3. Few movement parts, convenient maintenance, automatic control can be realized easily.

4. High efficiency of transportation reduce the cost of packing, loading and unloading.

5. Make the material avoid being damped, polluted, damaged, and mixed with other material, the quality of conveying is assured.

6. Various operation processes can be realized meanwhile for the conveying, such as mixture, crush, grade, dryness cooling, and dust collection.

7. Send the material from couple place to one place and from one place to couple place, realize far distance operation.

8. For the material with erratic chemical character, can adopt inertia gas conveying.

Introduction Manufacturer of Air Conveying System

SHANGHAI CLIRIK MACHINERY CO., LTD located in PUDONG New district of Shanghai China as a professional enterprise, which specializes in research, manufacture and sales of all kinds of mining equipment. We have established a whole production chain.​​ We still insist on communication and cooperation with prestigious scientific research institutions from both home and abroad to make our development ability always be on the industry front.

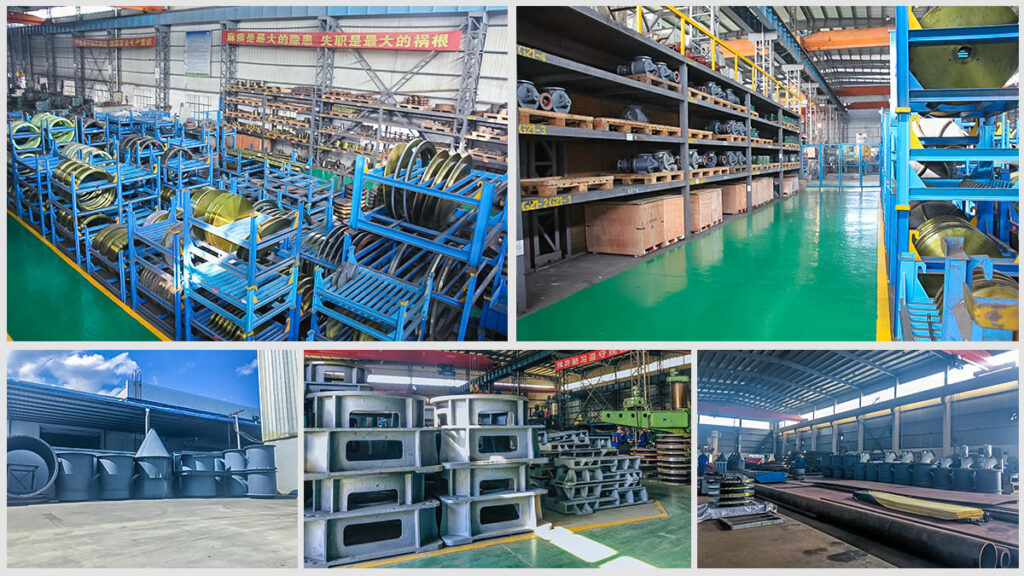

Our Workshop

Our workshop adopts a 5S management system for management. The staff of the workshop keep the passageway and worktable clean. The finished product equipment area, operation area and storage area of the workshop are reasonably divided. Production site reasonable and effective planning, organization, coordination, control and detection, to achieve high quality, efficient, low consumption, balanced, safe and civilized production. To provide customers with higher quality grinding equipment.

workshop
workshop

Other Product

In addition to the Air Conveying System, we can also provide you with HGM series ultrafine powder grinding mill, YGM series high pressure suspension grinding milljaw crusherhammer crushercone crusher, TH bucket elevator, CLG series powder surface coating machine and other auxiliary equipment of ore production line.

Clirik product recommendation
Clirik product recommendation

Our Certificate

With super product, well-deserved reputation and excellent service, Clirik has won lots of certificates and praise from our customers. Depend on this integrity, CLIRIK is always very popular among owners of quarry and mining. Won a number of patent certificates and honorary awards !

certification
certification

FAQ

Inquiry Service of air conveying system, air transport system, powder conveying system :

Please fill in your needed products and your message and please do not forget to email and/or phone if you like to be contacted. We are a professional machine manufacturer in China with 30 years of experience. Please kindly check the following, in order to select a suitable machine, send you specific technical data, quotation and the solution drawing for you.

1.What is the raw material do you want to convey?

2.What is the capacity per hour do you need?

3.What is the raw material input size?

4.What is the conveying length and height?

We hope you can tell us these details. We will give you the best quotation, technical data and solution drawing ASAP. Thanks. Your satisfaction is our greatest pursuit. We would like to sincerely for your service! We look forward to your inquiry!
