Working Principle of Clirik Ultrafine Mill

Working Principle of Clirik Ultrafine Mill

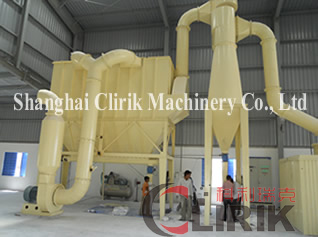

Main Components of HGM series ultrafine mills:
HGM series ultrafine mill mainly consists of main unit, classifier, dust cleaner, powder collector, blower, muffler, hammer crusher (can be replaced by jaw crusher), bucket elevator, sound-proof room, storage hopper, vibrating feeder and so on.

Working Principle of Clirik Ultrafine Mill:
After crushed by hammer crusher, the large materials are crushed into small ones and sent to storage hopper by elevator, and then evenly sent to the upper distribution plate of the turnplate by vibrating feeder and sloping feeding pipe.

When the grinding mill is at work, all the grinding rollers are rolling in the ring, and the materials are driven to the edge of the turnplate by the centrifugal force and fall down into the grinding chambers where the materials are repeatedly pressed, crushed and grinded by the rollers.

The high-pressure air blower constantly inhales air within the grinding mill and, in turn,  the airflow with crushed materials are brought to the classifier whose high-speed impeller will screen the airflow: the unqualified particle size will fall and return to the mill for being reground while the qualified particle size mixed with air will go into the cyclone powder collector. Most of the qualified powders will fall and exit from the discharging valve at the bottom; a small proportion of the fine powders, with airflow, moves to the dust cleaner, and clings to the surface of the filter bags. At the same time, the fine powders clinging to the surface fall down by the sudden vibration of the filter bags, which is caused by the instantly ejected high-pressure gas controlled by the pulse valve. The materials from the above two lots are sent by the conveyor at the bottom to get finished powders packed. In addition, filtered clean air will be emitted from the air outlet of muffler in the end.

Features of Clirik Ultrafine Mill:
1. The ultrafine mill is high efficient (twice as much as jet mill, mixing grinder and ball mill)
2. The spare parts of ultrafine mills can serve much longer time (2-3 times longer than that of impact mill or turbo mill.
3. High safety and reliability of the ultrafine mill (no rolling bearings and screws in the grinding cavity, so no problems caused by the wear of bearings or screws)
4. The ultrafine mills are characterized by high fineness (final size: 325-3000 mesh, D97<5 micron)
5. Environment-friendly
