Carbon Black Powder Ultrafine Grinding Mill
Modle : HGM Series
Finished Size: 150-2500 mesh
Processing Ability: 1-45 t/h
Max Feeding Size: 10-25 mm
MQQ : 1 Set
Price: 59999- 159999 $
Range Of Application: Carbon Black , Diatomite, Calcium Carbonate , Talc , Kaolin, Gypsum , Limestone, Kaolin, Bentonite, Dolomite…

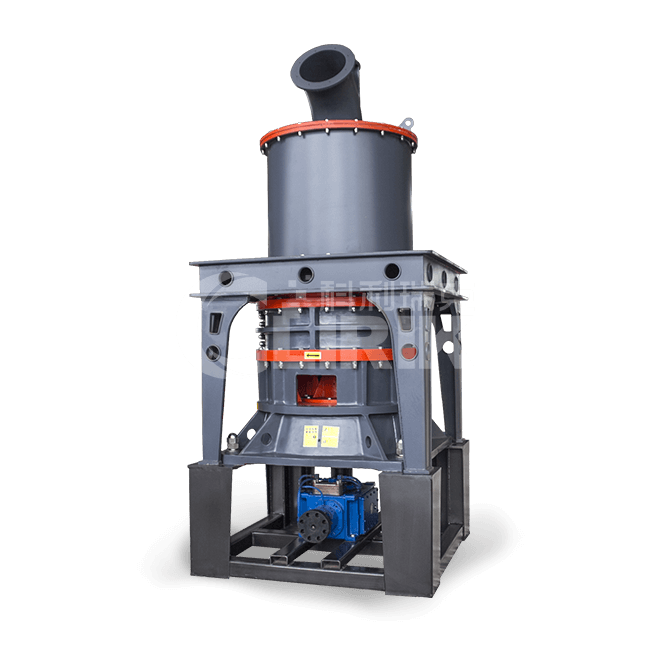

Carbon black ultrafine powder grinding mill is also called micro powder grinding roller mill machine. It can be used for grinding carbon black powder of 150-2500 mesh.
Carbon black ultrafine powder grinding mill specialized in producing fine and superfine powder of non-inflammable non-explosive and brittle materials with Moh’s hardness under six, such as calcite, chalk, limestone, dolomite, kaolin, bentonite, talc, mica, magnesite, illite, pyrophyllite, and vermiculite, sepiolite, attapulgite, rectorite, diatomite, barite, gypsum, alunite, graphite, fluorite, rock phosphate, kalium ore, pumice, fly ash, etc., totally more than 1000 kinds of materials.
Parameter 1
| Model | HGM80 | HGM80A | HGM90L | HGM100L-Ⅱ | HGM100P | HGM125L | HGM1680L |
| Ring Diameter(mm) | 800 | 800 | 900 | 1000 | 1000 | 1250 | 1680 |
| Ring Number (PCS) | 3 | 3 | 4 | 4 | 4 | 4 | 4 |
| Input Size (mm) | ≤10 | ≤10 | ≤10 | ≤15 | ≤15 | ≤20 | ≤20 |
| Adjustable range of finished product (mesh) | 150-3000 | 150-3000 | 150-3000 | 150-3000 | 150-3000 | 150-3000 | 150-3000 |
| Capacity (t/h) | 0.5-5.5 | 0.5-5.5 | 0.8-6.5 | 1.2-10 | 1.2-11 | 2.5-20 | 5-45 |
| Outlet Size L*W*H (mm) | 8605*4139*6050 | 10454*3393*6626 | 11735*3952*7525 | 14507*3633*7562 | 14362*4200*7562 | 19261*4406*8591 | 25067*5414*9007 |
| Main motor power (kw) | 75 | 75 | 55*2 | 132/75*2 | 132/75*2 | 185 | 315 |
Parameter 2
| Unit KW | HGM80 | HGM90L | HGM100L/HGM100P | HGM125L | HGM168L |
| Main Unit | 75 | 2*45 | 132-150 | 185-200 | 315 |
| Classifier | 18.5 | 18.5-30 | 30-37 | 75 | 132 |
| Blower | 45 | 55 | 75 | 2*45-2*55 | 2*75-2*90 |
| Crusher | 18.5 | 18.5 | 18.5 | 45 | 75 |
| Bucket Elevator | 3 | 3 | 4 | 4 | 7.5 |
| BeltConveyor Feeder | 1.5 | 1.5 | 1.5 | 1.5 | 2 |
| Discharging Valve | 2*0.75 | 1.1 | 1.1 | 1.5 | 2*1.5 |
| Air compressor | 11 | 15 | 22 | 37 | 55 |
Carbon black ultrafine powder grinding mill mainly consists of main unit, classifier, powder collector, dust cleaner, blower, muffler, sound-proof room, crusher, bucket elevator, storage hopper, and vibrating feeder.
After crusher by hammer crusher, the large materials become small ones and are sent to storage hopper by elevator, and then evenly sent to the upper distribution plate of the turn plate of the turn plate by vibrating feeder and sloping feeding pipe.
When the carbon black ultrafine powder grinding mill is at work, the main bearing and each dial are driven by electricity of main equipment through reducer, and all the grinding rollers are rolling in the ring channels driving by dial through plunger. The materials are driven to the edge of the turn plate by the centrifugal force and fall down into the grinding chambers where the materials are repeatedly pressed. crushed and grinded by the rollers. Then the materials fall into multiple layers and to be crushed and ground continuously to micro powder.
The high-pressure air blower constantly inhales air within the grinding mill and, in turn, the airflow with crushed materials are brought to the classifier whose high-speed impeller will screen the airflow: the unqualified particle size will fall and return to the mill for being around while the qualified particle size mixed with air will go into the cyclone powder collector.
Most of the qualified powders will fall and exit from the discharging valve at the bottom;a small proportion of the fine powders, with airflow, moves to the dust cleaner, and clings to the surface of the filter bags. At the same time, the fine powders, with airflow, moves to by the sudden vibration of the filter bags, which is caused by the instantly ejected high-pressure gas controlled by the pulse valve. The materials from the above two lots are sent by the conveyor at the bottom to get finished powders packed. In addition, filtered clean air will be emitted from the air outlet of muffler in the end.
1. Carbon black ultrafine powder grinding mill with the same fineness and power consumption, the output is 30% higher than that of jet mill and ball mill.
2. Low wear parts loss, all wear parts are made of high wear resistant materials, prolong the service life of grinding equipment.
3. The fineness of the finished product can reach 150-2500 mesh range.
4. Environmental protection, the use of high efficiency pulse type dust collector, dust-free in the operation process of pollution, equipped with muffler and anechoic chamber, reduce noise, in line with international environmental standards of production, to the surrounding environment has played a role in environmental protection.
If you would like to know more about the carbon black ultrafine powder grinding mill or the customer case, please click here to leave us a message, our sales manager will contact you later.
Carbon black
Carbon black is a kind of amorphous carbon, which is a light, loose and extremely fine black powder with a very large surface area ranging from 10 to 3000m2/g. It is a carbonaceous substance (coal, natural gas, heavy oil, fuel oil, etc.) are the products obtained by incomplete combustion or thermal decomposition under the condition of insufficient air.
Carbon black powder can be applied to tires, plastics, food contact grades, batteries, high performance coatings, rubber goods, pipe, agricultural irrigation, mulch films and greenhouse coverings, automotive skin contact, wire and cable, toner and printing inks.
In addition to carbon black powder HGM series ultrafine powder grinding mill, we have a lot of other carbon black related equipment for you to choose from.
