Limestone Powder Ultrafine Grinding Mill

Table of Contents

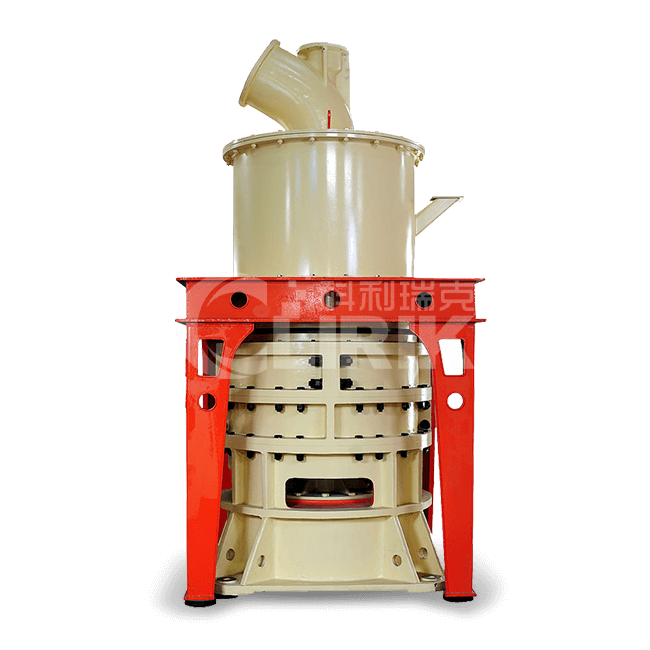

Limestone Powder Ultrafine Grinding Mill

Limestone Powder Ultrafine Grinding Mill

Modle : HGM Series

Finished Size: 325-3000 mesh

Processing Ability: 1-45 t/h

Max Feeding Size: 10-25 mm

MQQ : 1 Set

Price: 59999- 159999 $

Range Of Application: Limestone,Calcium Carbonate ,Talc ,Kaolin,Gypsum ,Kaolin,Bentonite,Dolomite…

Product Overview Of Limestone Powder Ultrafine Grinding Mill

Limestone powder ultrafine grinding mill was made by Clirik in 2016. This is a professional processing of limestone powder grinding machines. The fineness of the finished product can be adjusted between 325 mesh and 3000 mesh. Limestone Powder Ultrafine Grinding Mill has HGM80, HGM90, HGM100, HGM125,HGM1680 five models.

Product Parameter Of Limestone Powder Ultrafine Grinding Mill

Model HGM80 HGM80A HGM90L HGM100L-Ⅱ HGM100P HGM125L HGM1680L
Ring Diameter(mm) 800 800 900 1000 1000 1250 1680
Ring Number (PCS) 3 3 4 4 4 4 4
Input Size (mm) ≤10 ≤10 ≤10 ≤15 ≤15 ≤20 ≤20
Adjustable range of finished product (mesh) 150-3000 150-3000 150-3000 150-3000 150-3000 150-3000 150-3000
Capacity (t/h) 0.5-5.5 0.5-5.5 0.8-6.5 1.2-10 1.2-11 2.5-20 5-45
Outlet Size L*W*H (mm) 8605*4139*6050 10454*3393*6626 11735*3952*7525 14507*3633*7562 14362*4200*7562 19261*4406*8591 25067*5414*9007
Main motor power (kw) 75 75 55*2 132/75*2 132/75*2 185 315

Processing Materials Of Limestone Powder Ultrafine Grinding Mill

Limestone Powder Ultrafine Grinding Mill for non-flammable and explosive ore with Mohs hardness below 6. such us limestone, talc, calcium carbonate, calcite, chalk, dolomite, kaolin, bentonite, mica, magnesite, illite, pyrophyllite and vermiculite, sepiolite, attapulgite, rectorite, diatomite, barite, gypsum, alunite, graphite, fluorite, rockphosphate, Kalium ore, pumice, etc., totally more than 100 kinds of materials.

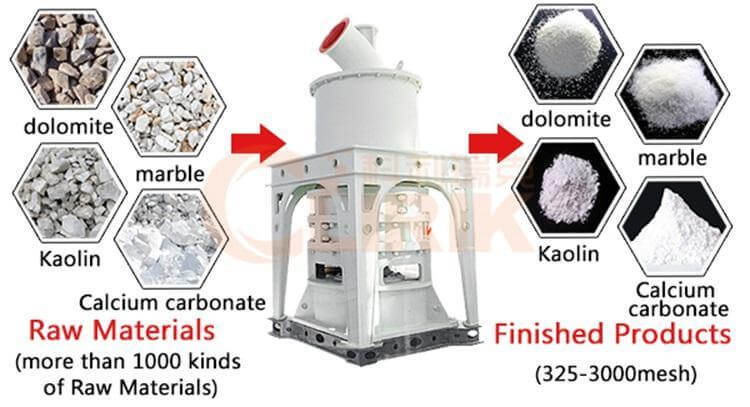

Limestone powder ultrafine grinding mill processing materials
Limestone powder ultrafine grinding mill processing materials

Application Field of Limestone Powder Ultrafine Grinding Mill

Limestone powder ultrafine grinding mill is widely used in metallurgy, mining, non-metallic mineral materials, chemical industry, ceramics and new materials.

Limestone Application-field

Working Principle Of Limestone Powder Ultrafine Grinding Mill

Limestone powder ultrafine grinding mill main bearing and each dial are driven by electricity of main machine through reducer, and numbers of rollers, which are rolling in the ring, are driven by dial through plunger. After being crushed by hammer crusher, the big materials become small ones and are sent to storage hopper by elevator and further sent to the middle of first dial evenly by the electromagnetic vibrating feeder and feeding pipe.

The materials will be driven to the edge of the dial by centrifugal force and fall down into the ring, crushed and grinded by roller, and become powder after production of three rings. The high pressure centrifugal blower will inhale air from outside and blow the crushed materials to classifier. The rotating turbo in the powder concentrator will make the coarse powder materials return to the mill and ground, while the fineness will mix with the air and go into the cyclone and be discharged in the discharge bin, which is at the bottom of it. The air, which is mixed with very little fineness, will be purified by impulse duster and discharged by blower and muffler.

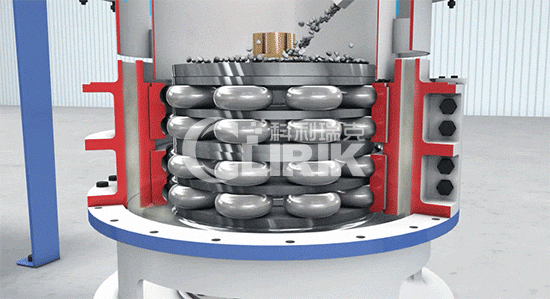

limestone-powder-ultrafine-grinding-mill-working-principle
limestone-powder-ultrafine-grinding-mill-working-principle

Product Advantage Of Limestone Powder Ultrafine Grinding Mill

1. High efficiency
Under the same final size and power, the product capacity of ultrafine mill is twice than jet mill and agitation mill.

2. Longer lifetime of spare parts
The roller and ring are made of special material, which improve the grinding efficiency a lot. For same material and final size, the lifetime of its wearing parts can reach to more than one year, about 2-5 times as long as that of vertical shaft impact crusher and turbo-mill. Especially when handling calcium carbonate and calcite, the lifetime can reach 2-5 years.

3. High safety and reliability
There are no rolling bearings and bolts in grinding cavity, so problems caused by bolts shedding or wear of bearings and seal components will never happen.

4. High fineness of products

The product fineness can reach D97=<5um.

5. Environment friendly
The application of pulse dust collector and muffler reduce the pollution and noise of the dust, which has reached national environment protection standard.

Manufacturer Introduction Of Limestone Powder Ultrafine Grinding Mill

 SHANGHAI CLIRIK MACHINERY CO., LTD located in PUDONG New district of Shanghai china as a professional enterprise, which is specializing in research, manufacture and sales of all kinds of mining equipment. Our company has already formed a full set of modern production line, equipped with intelligent, standardized testing and controlling laboratories, owned a professional team for R&D, production, sales and service.

company
company

So far, we have established a whole production chain. The products are cover micro powder grinding mill, high pressure suspension grinding mill, European version coarse grinding mill, hammer crusher, jaw crusher, screw conveyor, bucket elevator and so on. They are widely used in the industry of mining, construction materials, chemicals, metallurgy, transportation, hydraulic engineering and so on.

Clirik product recommendation
Clirik product recommendation

Especially we independently developed HGM micro powder grinding mill, which are not only renowned in the domestic market, but also have been sold widely in Eastern Europe, Middle East, Africa, South Asia, Southeast Asia, Oceania, and America, etc.We still insist on communication and cooperation with prestigious scientific research institutions from both home and abroad to make our development ability always on the domestic front.

ultrafine powder grinding mill case
ultrafine powder grinding mill case

Based on the principle of constant innovation and quality guarantee, customer foremost, we are able to provide our customers not only the highest quality products at the most favorable price but also the most reasonable solution, such as the selection of the equipment, optimized process configuration and a full range of technical support. Therefore, we always follow your steps, pursue your value and achieve your benefit.
